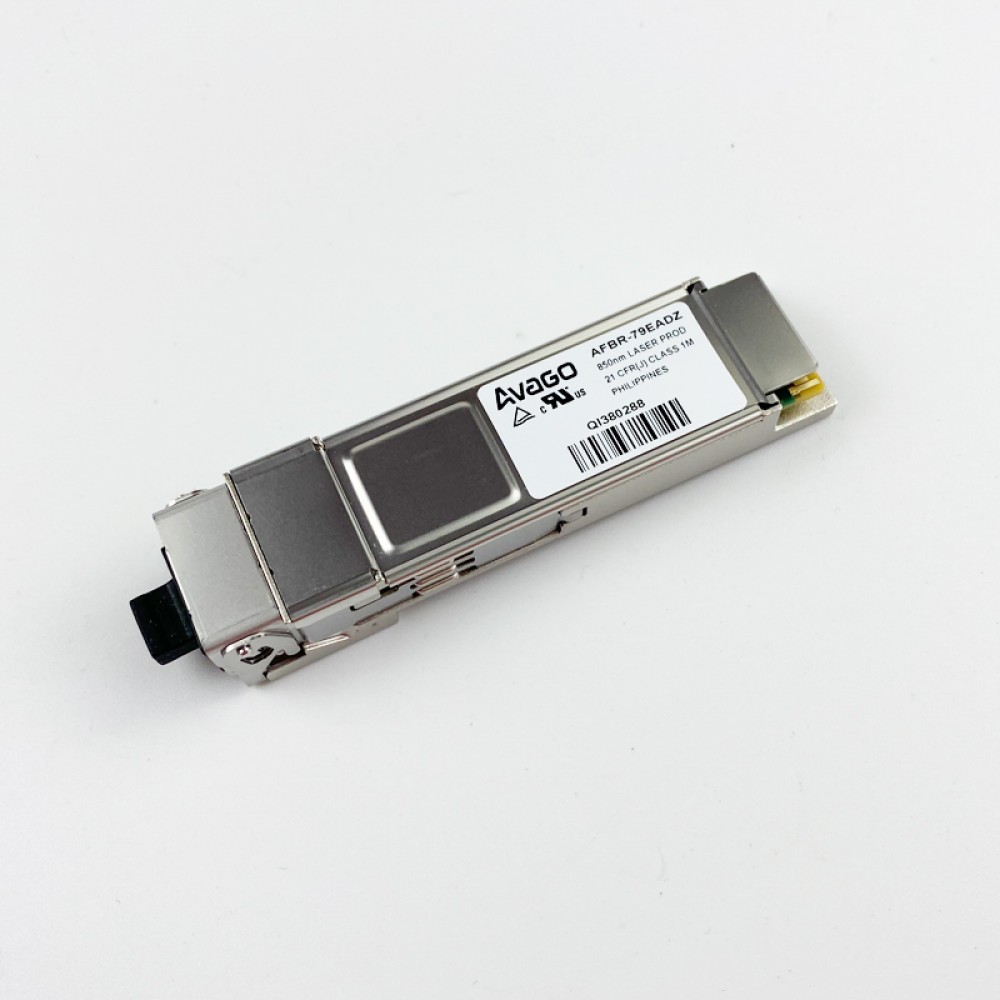

Huawei QSFP+ 40G iSR4 Multimode Optical Module PN:34060635 (AFBR-79EADZ)
¥2,320.00
促销价
¥2,320.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP+ 40G iSR4 Multimode Optical Module PN:34060635 (AFBR-79EADZ)
¥2,320.00
促销价
¥2,320.00
常规价格
Product Overview
Short-reach parallel multimode QSFP+ optical module PN 34060635, Avago original chip AFBR-79EADZ, 4×9.8304G parallel 850nm VCSEL, MPO 12-core connector, max transmission distance 100m over OM4 multimode fiber, standard 40GBase-iSR4 for short-distance leaf-spine data center interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei (Avago chip inside) |
| PN | 34060635 |
| Chip Model | AFBR-79EADZ |
| Form Factor | QSFP+ MPO 12-core Parallel MMF |
| Rate | 9.8304G per lane, total 40Gbps |
| Wavelength | 850nm VCSEL parallel 4-channel |
| Tx Optical Power | -7.6dBm ~ +2.4dBm |
| Rx Sensitivity | ≤ -8.4dBm |
| Max Reach | 100m OM4 Multimode Fiber |
| Fiber Type | OM3 / OM4 MMF |
| Interface | MPO/MTP Female |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $325.00 |
Core Features
✅ QSFP+ hot-swappable package, compatible with all mainstream 40G leaf/spine aggregation switches
✅ Original Avago AFBR-79EADZ VCSEL chip, stable parallel optical performance, low error rate
✅ 850nm short-wave parallel design, 100m transmission on OM4 multimode cable for intra-cabinet short links
✅ MPO multi-core connector, reduces wiring quantity for dense 40G parallel links
✅ Built-in complete DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power, laser bias current
✅ Industrial-grade chip, long service life, widely used in medium and small data center short-distance interconnection
Application Scenarios
Small and medium data center cabinet 40G leaf-spine interconnection, enterprise computer room high-density server aggregation links, cloud computing short horizontal wiring, storage network 40G short-distance transmission projects.
