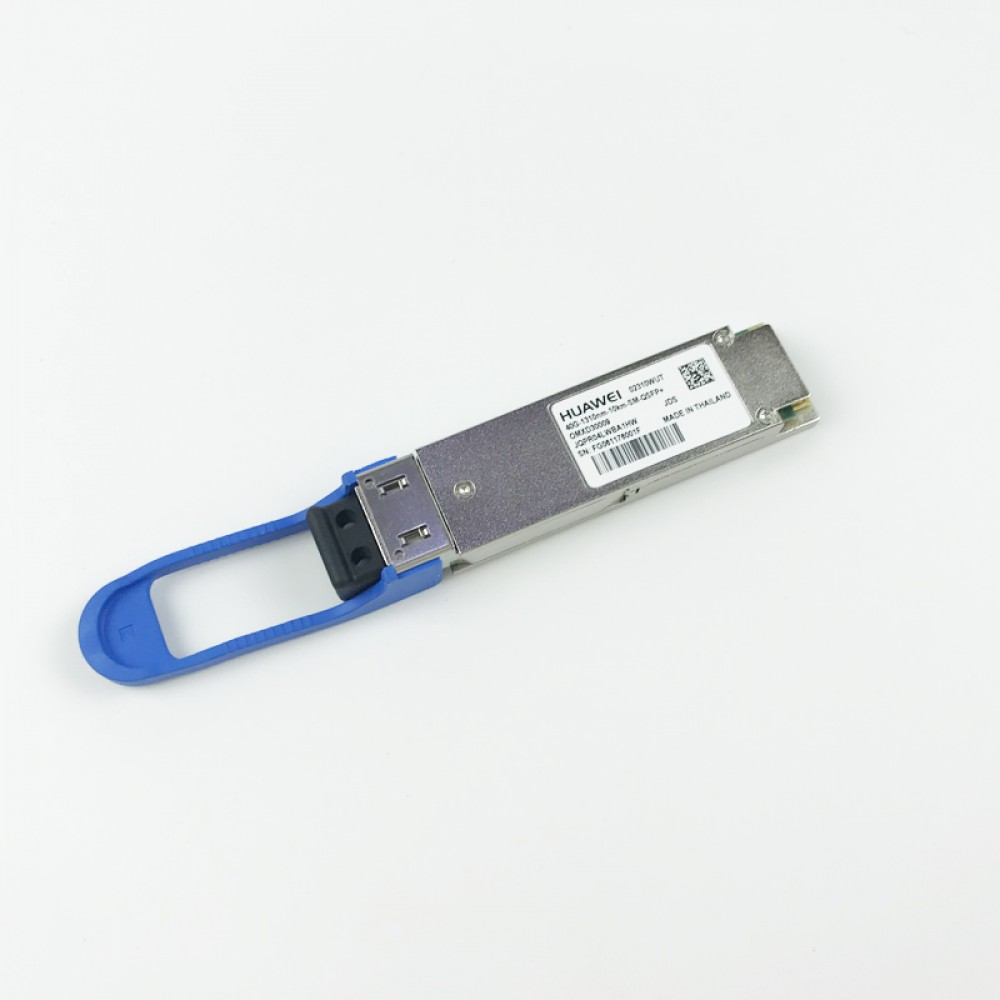

Huawei QSFP+ 40G LR4 10km Single-mode LC WDM Optical Module PN:02310WUT
¥2,140.00
促销价
¥2,140.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP+ 40G LR4 10km Single-mode LC WDM Optical Module PN:02310WUT
¥2,140.00
促销价
¥2,140.00
常规价格
Product Overview
Long-reach WDM single-mode QSFP+ optical module PN 02310WUT, compliant with 40GBase-LR4 standard, integrated 4-channel 1310nm WDM DFB laser, duplex LC dual-fiber interface, maximum transmission distance 10km over G.652 single-mode fiber, applied to cross-building, cross-park 40G backbone transmission for data parks and metropolitan networks.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02310WUT |
| Form Factor | QSFP+ Duplex LC WDM Single-mode |
| Standard | 40GBase-LR4 |
| Bit Rate | 41.25Gbps (4×10.3125G WDM wavelength division multiplexing) |
| Wavelength | 1310nm 4-lane WDM DFB |
| Tx Optical Power | -7 ~ +2.3dBm |
| Rx Sensitivity | ≤ -11.5dBm |
| Max Reach | 10km G.652 Single-mode Fiber |
| Matching Fiber | G.652 SMF |
| Interface | Duplex LC/UPC |
| Pull Tab | Blue |
| Origin | Made in Thailand |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Shipped within 2 Business Days |
| Warranty Period | 3 Years Official Factory Warranty |
| Unit Selling Price | $300.00 |
Core Features
✅ Standard hot-swappable QSFP+ package, plug-and-play compatible with mainstream 40G core aggregation switches
✅ Built-in LR4 wavelength division multiplexing, only 2 LC jumpers required for 40G bandwidth, no MPO multi-core trunk cable
✅ 1310nm low-dispersion DFB laser, stable 10km long-distance single-mode transmission across buildings and industrial parks
✅ Full DDM digital optical monitoring, real-time reading of module temperature, transmit/receive optical power and laser bias current
✅ Distinct blue pull tab for quick on-site classification of LC long-reach single-mode 40G transceivers
Typical Application Scenarios
Data center park cross-building 40G core interconnection, industrial park multi-plant long-distance high-speed convergence links, campus cross-area core network transmission, small metropolitan access 40G wavelength division transmission projects.
