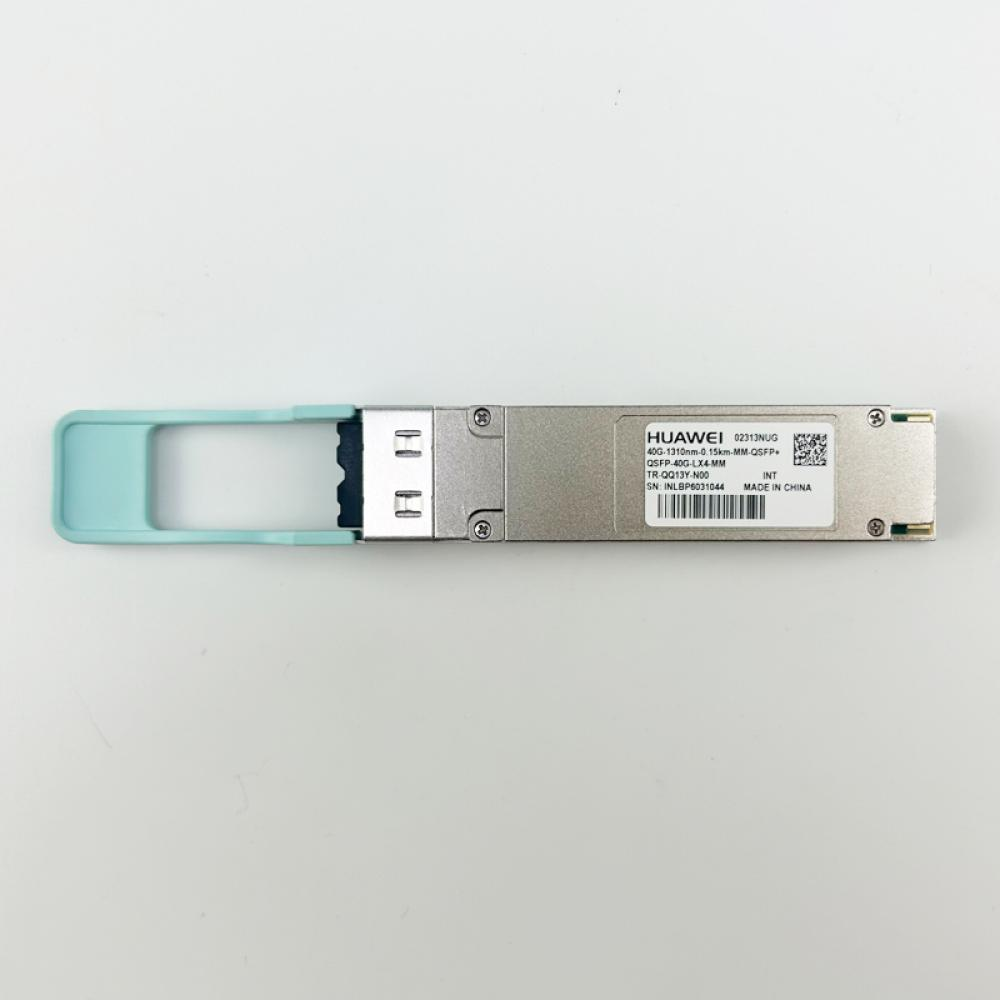

Huawei QSFP+ 40G LX4 MM 150m Multi-mode Optical Module PN:02313NUG
¥1,490.00
促销价
¥1,490.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP+ 40G LX4 MM 150m Multi-mode Optical Module PN:02313NUG
¥1,490.00
促销价
¥1,490.00
常规价格
Product Overview
40G LX4 multi-mode parallel optical module PN:02313NUG, QSFP+ package, 40GE rate, 1310nm CWDM four-wavelength parallel, duplex LC interface, max transmission distance 150m over OM3/OM4 multi-mode fiber, used for short-distance high-density interconnection inside data center cabinets.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02313NUG |
| Model | QSFP-40G-LX4-MM |
| Form Factor | QSFP+ Duplex LC Multi-mode |
| Rate | 40GE / 41.25Gbps |
| Wavelength | 1310nm band 4-channel CWDM parallel |
| Fiber Type | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Reach | 150m |
| Interface | Duplex LC/UPC |
| Pull Tab | Cyan / Light Blue |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $210.00 |
Core Features
✅ Standard hot-swappable QSFP+ package, compatible with early 40G leaf/spine data center switches
✅ LX4 four-wavelength parallel technology, low loss transmission on multi-mode fiber up to 150m, longer than SR4 multi-mode modules
✅ Duplex LC dual-fiber interface, matches standard multi-mode LC jumpers
✅ Built-in full DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
✅ Light blue pull tab for quick identification of 40G LX4 multi-mode modules
Application Scenarios
High-density short-distance interconnection inside cloud data center cabinets, medium-sized enterprise computer room row-to-row switch links, storage area network (SAN) short-range fiber convergence, campus small core 40G access networking.
