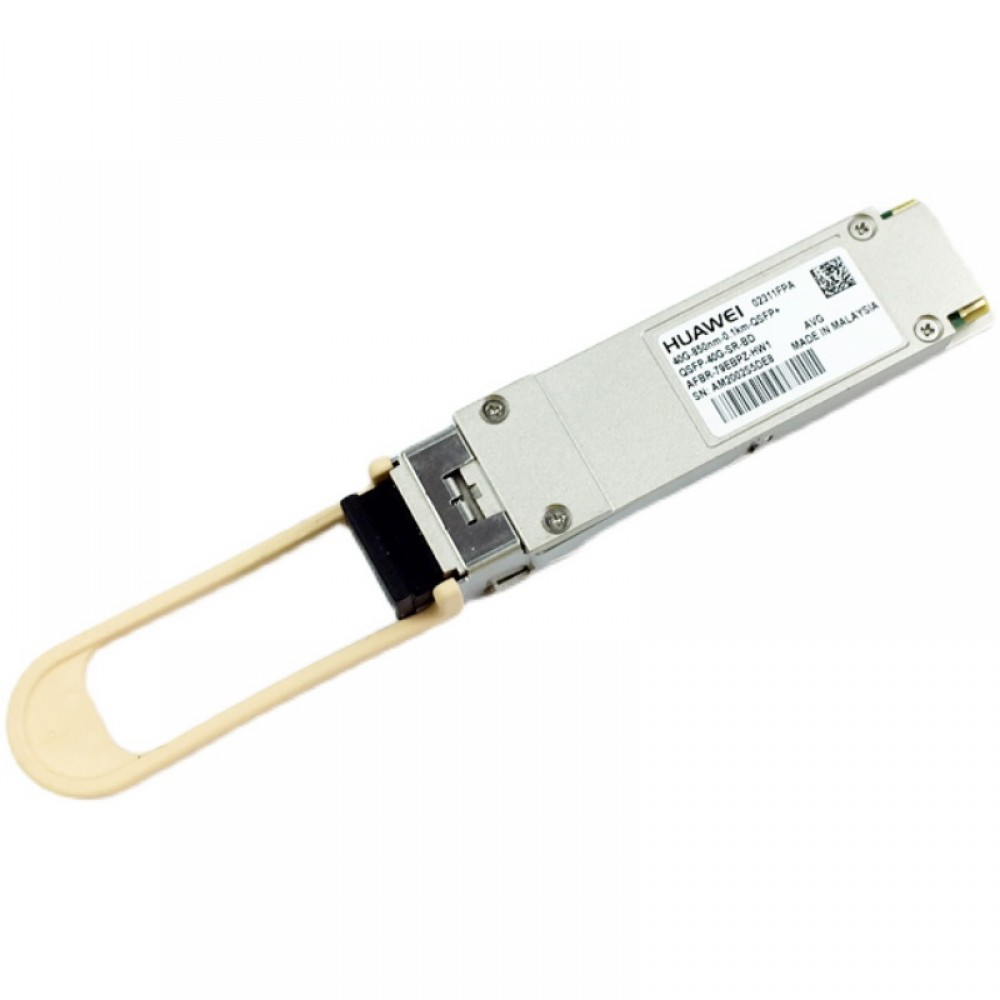

Huawei QSFP+ 40G SR-BD 100m LC Multimode BiDi Optical Module PN:02311FPA

Bidirectional short-reach multimode QSFP+ optical module PN 02311FPA, standard 40GBase-BD, 850nm single-core bidirectional optical design, duplex LC dual fiber port, max transmission distance 100m over OM4 multimode fiber. Different from parallel MPO modules, it uses common LC jumpers for 40G short-distance interconnection.

✅ Standard QSFP+ hot-swappable package, compatible with all mainstream 40G leaf/spine switches ✅ BiDi bidirectional single-core optical design, no MPO trunk cable required, adopts common LC dual fiber jumpers to save cabling cost ✅ 850nm short-wave VCSEL, stable 100m intra-cabinet short-distance transmission on OM4 multimode fiber ✅ Built-in complete DDM digital optical monitoring, real-time monitoring of temperature, Tx/Rx optical power and laser bias current ✅ Suitable for reconstruction of old computer rooms with existing LC wiring, no need to re-lay MPO multi-core cables

Old data center cabinet 40G interconnection renovation, small and medium computer room short-distance server-switch links, enterprise computer room 40G convergence transmission with existing LC multimode wiring.
