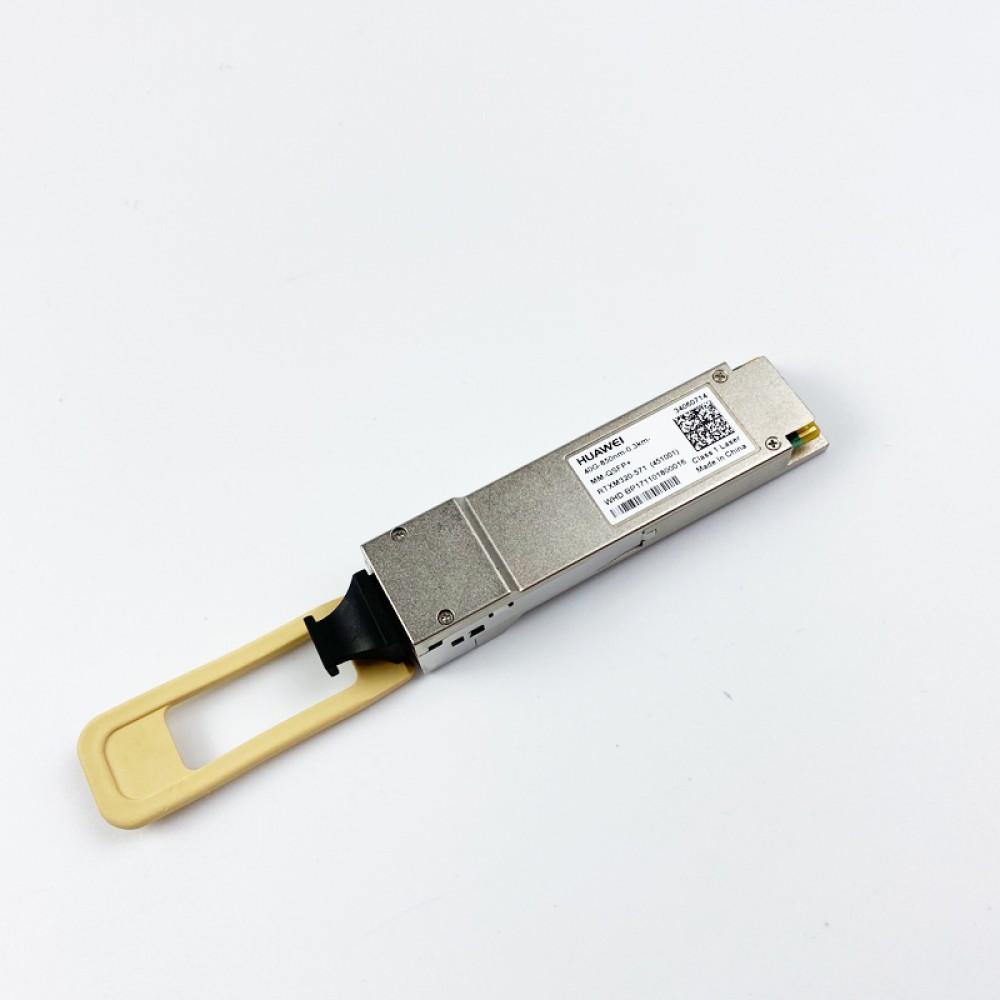

Huawei QSFP+ 40G SR4 MPO Multimode Optical Module PN:34060714
¥736.00
促销价
¥736.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP+ 40G SR4 MPO Multimode Optical Module PN:34060714
¥736.00
促销价
¥736.00
常规价格
Product Overview
Short-reach parallel multimode QSFP+ optical module PN 34060714, total bandwidth 41.25Gbps, 850nm parallel VCSEL, MPO 12-core connector, max transmission distance 300m over OM4 multimode fiber, standard 40GBase-SR4 for medium-long cross-row interconnection in large data centers.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060714 |
| Form Factor | QSFP+ MPO 12-core Parallel MMF |
| Bit Rate | 41.25Gbps (4×10.3125G parallel lanes) |
| Wavelength | 850nm VCSEL parallel 4-channel |
| Tx Optical Power | -7.6 ~ +0.5dBm |
| Rx Sensitivity | ≤ -5.4dBm |
| Max Reach | 300m OM4 Multimode Fiber |
| Fiber Type | OM3 / OM4 MMF |
| Interface | MPO/MTP Female |
| Pull Tab | Beige/Yellow |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $105.00 |
Core Features
✅ Standard hot-swappable QSFP+ package, compatible with all mainstream 40G leaf-spine aggregation switches
✅ SR4 high-performance parallel design, up to 300m transmission on OM4 fiber, longer than eSR4 (150m)
✅ MPO multi-core connector, reduces cable quantity for dense 40G parallel links, neat cabinet wiring
✅ Built-in complete DDM digital optical monitoring, real-time reading of module temperature, transmit/receive optical power and laser bias current
✅ Low-cost mass deployment model, ideal for large cloud IDC horizontal long-distance wiring
Application Scenarios
Large cloud data center cross-row server-switch interconnection, medium-large enterprise long horizontal multimode trunk wiring, high-density storage network medium-long distance transmission, new IDC construction with MPO pre-terminated cable layout.
