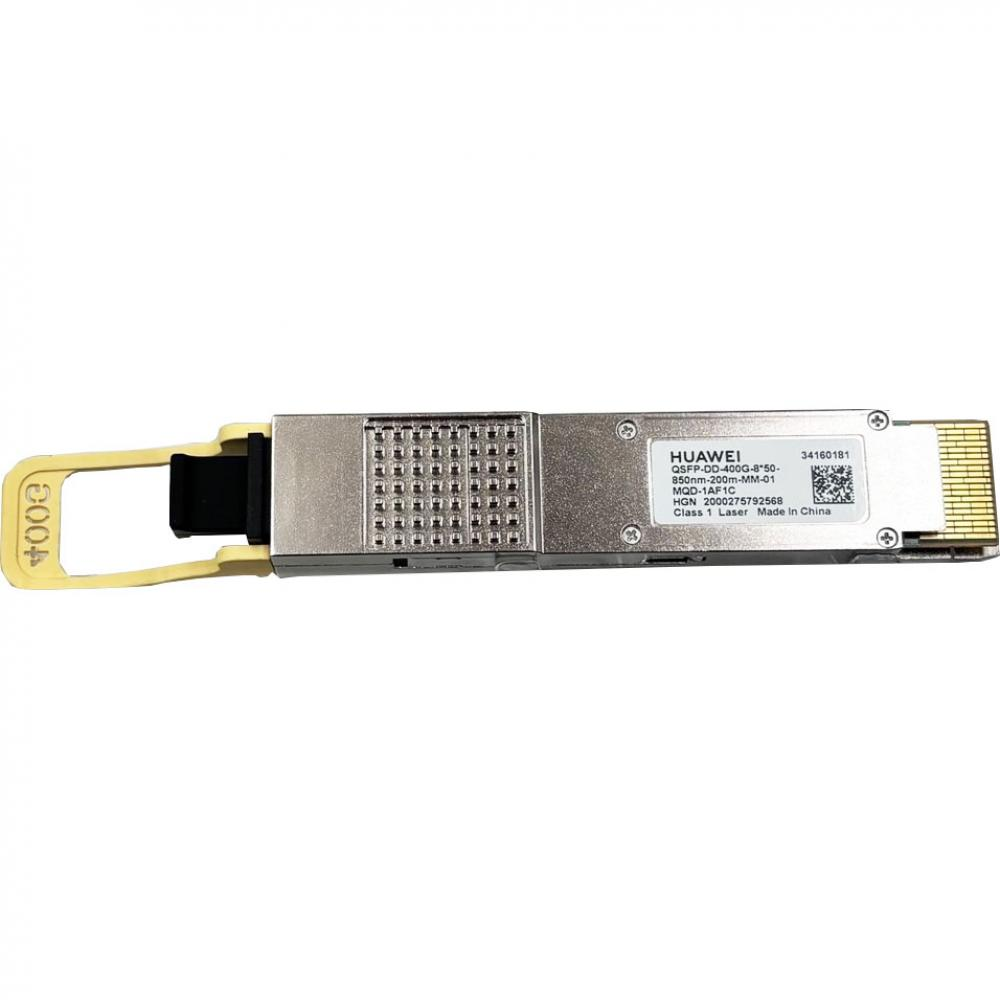

Huawei QSFP-DD 400G SR8 Multi-mode Optical Module PN:34160181 Model MQD-1AF1C
¥5,380.00
促销价
¥5,380.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP-DD 400G SR8 Multi-mode Optical Module PN:34160181 Model MQD-1AF1C
¥5,380.00
促销价
¥5,380.00
常规价格
Product Overview
400GBASE-SR8 short-reach multi-mode optical transceiver PN 34160181, QSFP-DD package, 8×50G PAM4 850nm eight-channel VCSEL parallel laser, MPO interface, max transmission distance 200m over OM4 multi-mode fiber, deployed for next-gen high-density 400G leaf-spine data center rack interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34160181 |
| Internal Model | MQD-1AF1C |
| Standard | 400GBASE-SR8 |
| Form Factor | QSFP-DD MPO Multi-mode |
| Bit Rate | 400Gbps (8×50G PAM4) |
| Wavelength | 850nm 8-channel VCSEL parallel laser |
| Fiber Type | OM4 Multi-mode Fiber (MMF) |
| Max Reach | 200m |
| Interface | 24-core MPO female connector |
| Pull Tab | Gold/Yellow SR8 identification |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $750.00 |
Core Features
✅ High-density QSFP-DD dual-width package, compatible with mainstream 400G cloud data center switches
✅ 8-lane PAM4 parallel VCSEL design, 400G ultra-high bandwidth, low power consumption
✅ 200m transmission distance on OM4 multi-mode fiber, covers full intra-data center cabinet range
✅ MPO-24 parallel fiber port, supports ultra-high density trunk cabling in large-scale data centers
✅ Full DDM digital diagnostic function, real-time monitor temperature, transmit/receive optical power and laser bias current
Application Scenarios
Next-generation large cloud data center 400G leaf-spine switching, high-density server cabinet interconnection, AI computing cluster internal short-distance transmission, hyperscale data center fiber reconstruction, enterprise high-performance computing network deployment.
