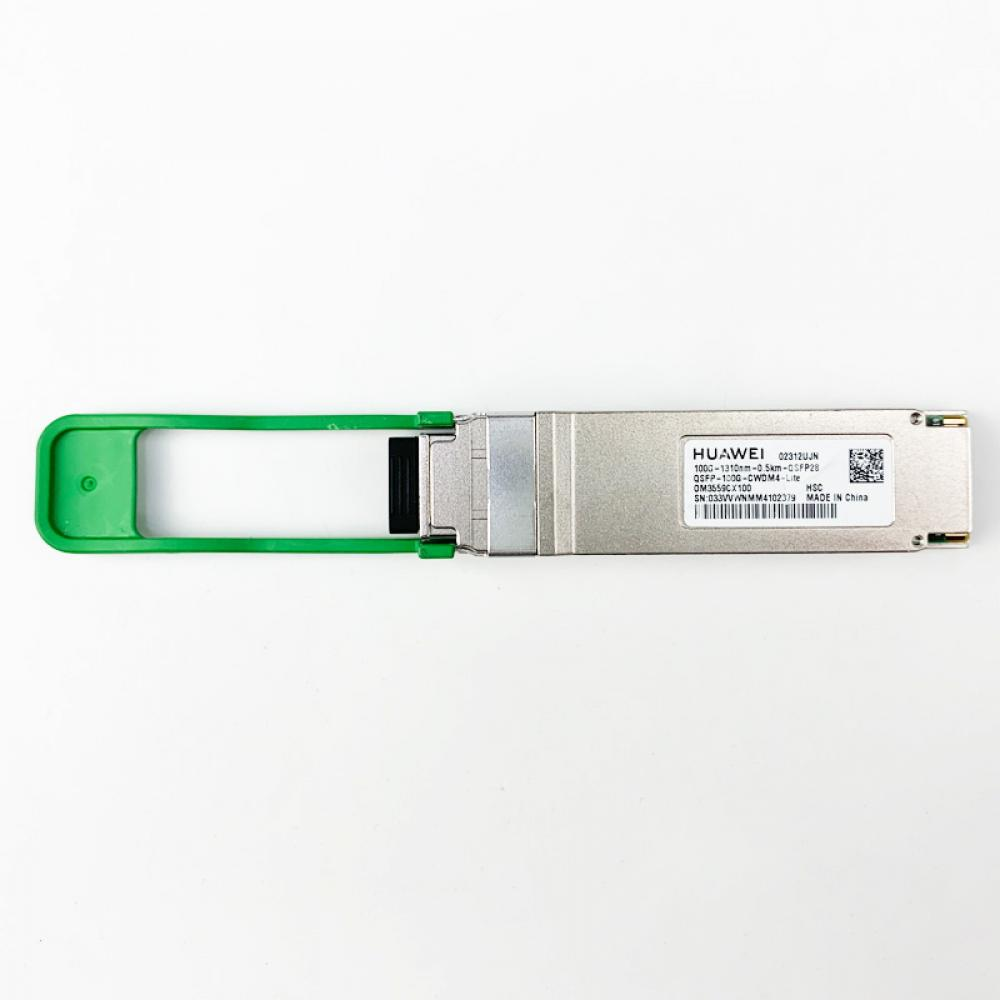

Huawei QSFP28 100G CWDM4 Optical Module PN:02312UJN
¥1,740.00
促销价
¥1,740.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28 100G CWDM4 Optical Module PN:02312UJN
¥1,740.00
促销价
¥1,740.00
常规价格
Product Overview
100GBASE-CWDM4 short-reach single-mode optical transceiver PN 02312UJN, QSFP28 package, 1310nm four-channel CWDM DFB laser, duplex LC interface, max transmission distance 0.5km over G.652 single-mode fiber, used for intra-data center short-distance interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02312UJN |
| Standard | 100GBASE-CWDM4 |
| Form Factor | QSFP28 Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength | 1310nm band 4-channel CWDM DFB |
| Max Reach | 0.5km |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Interface | Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $245.00 |
Core Features
✅ Standard QSFP28 compact package, widely compatible with mainstream 100G data center switches
✅ Four-channel CWDM parallel laser, low power consumption, stable 500m intra-data center transmission
✅ Green pull tab for easy identification of short-reach single-mode module
✅ Universal duplex LC optical port, matched with standard single-mode LC simplex jumpers
✅ Complete DDM digital diagnostic monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
Application Scenarios
Cloud data center cabinet-to-cabinet short-distance interconnection, same-room server aggregation, enterprise small-scale 100G short-distance switching networking, low-cost intra-data center fiber reconstruction.
