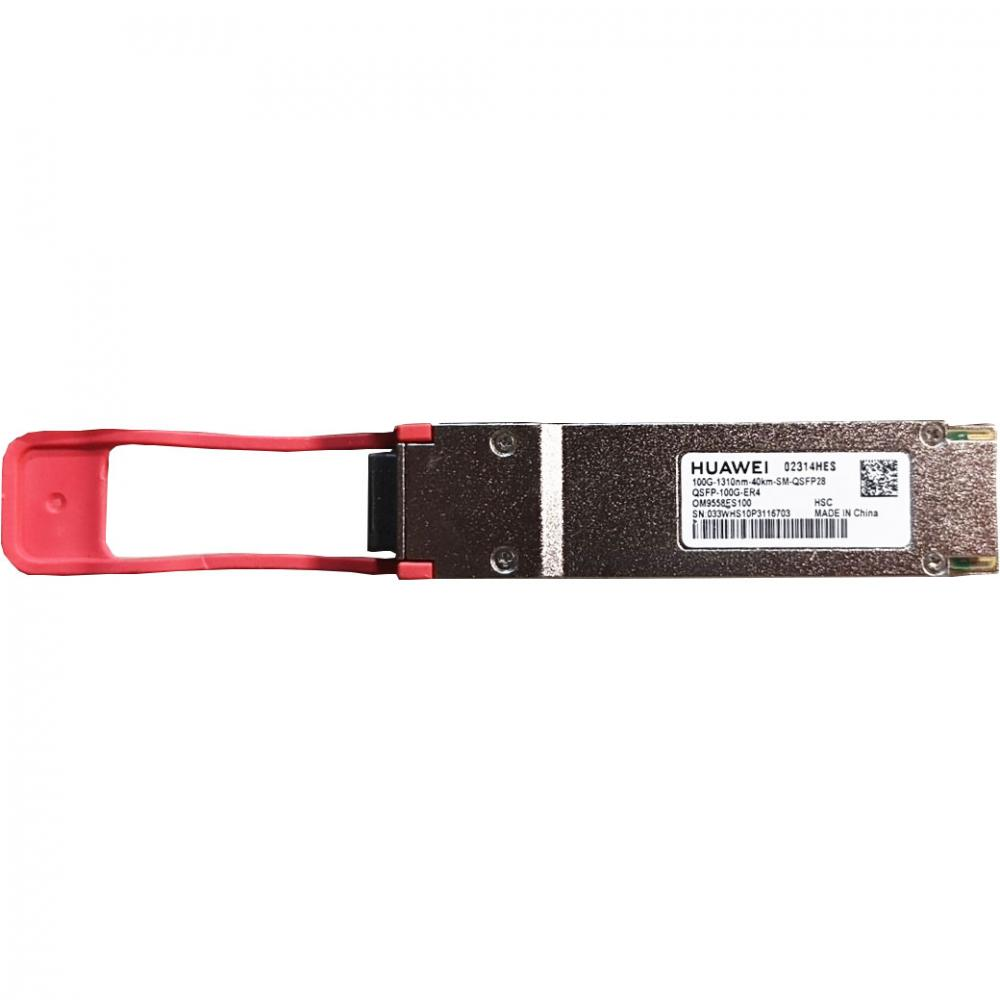

Huawei QSFP28 100G ER4 40km Optical Module PN:02314HES Model OM9558ES100
¥17,980.00
促销价
¥17,980.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28 100G ER4 40km Optical Module PN:02314HES Model OM9558ES100
¥17,980.00
促销价
¥17,980.00
常规价格
Product Overview
Long-reach single-mode optical transceiver PN 02314HES, QSFP28 package, 1295~1310nm four-channel high-power CWDM DFB laser, duplex LC interface, max transmission distance 40km over G.652 single-mode fiber, designed for cross-city metro backbone and long-distance enterprise interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02314HES |
| Internal Model | OM9558ES100 |
| Standard | 100GBASE-ER4 |
| Form Factor | QSFP28 Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength Range | 1295nm ~ 1310nm CWDM 4 lanes |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 40km |
| Interface | Duplex LC/UPC |
| Pull Tab | Red (ER4 long-distance standard identifier) |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $2500.00 |
Core Features
✅ Universal QSFP28 form factor, compatible with mainstream 100G data center switches and Huawei OSN OTN equipment
✅ High-power DFB laser + APD sensitive receiving chip, stable 40km cross-district metro transmission
✅ Red pull tab for quick visual differentiation of ER4 40km long-reach modules
✅ Standard duplex LC optical port, matches regular single-mode LC simplex patch cords
✅ Full DDM digital diagnostic function, real-time monitor module temperature, transmit/receive optical power and laser bias current
Application Scenarios
Operator municipal cross-district 100G aggregation backbone, large cloud data center inter-city medium-long distance convergence, multi-branch enterprise cross-city networking, financial multi-branch intra-city transmission, municipal campus long-distance OTN access layer construction.
