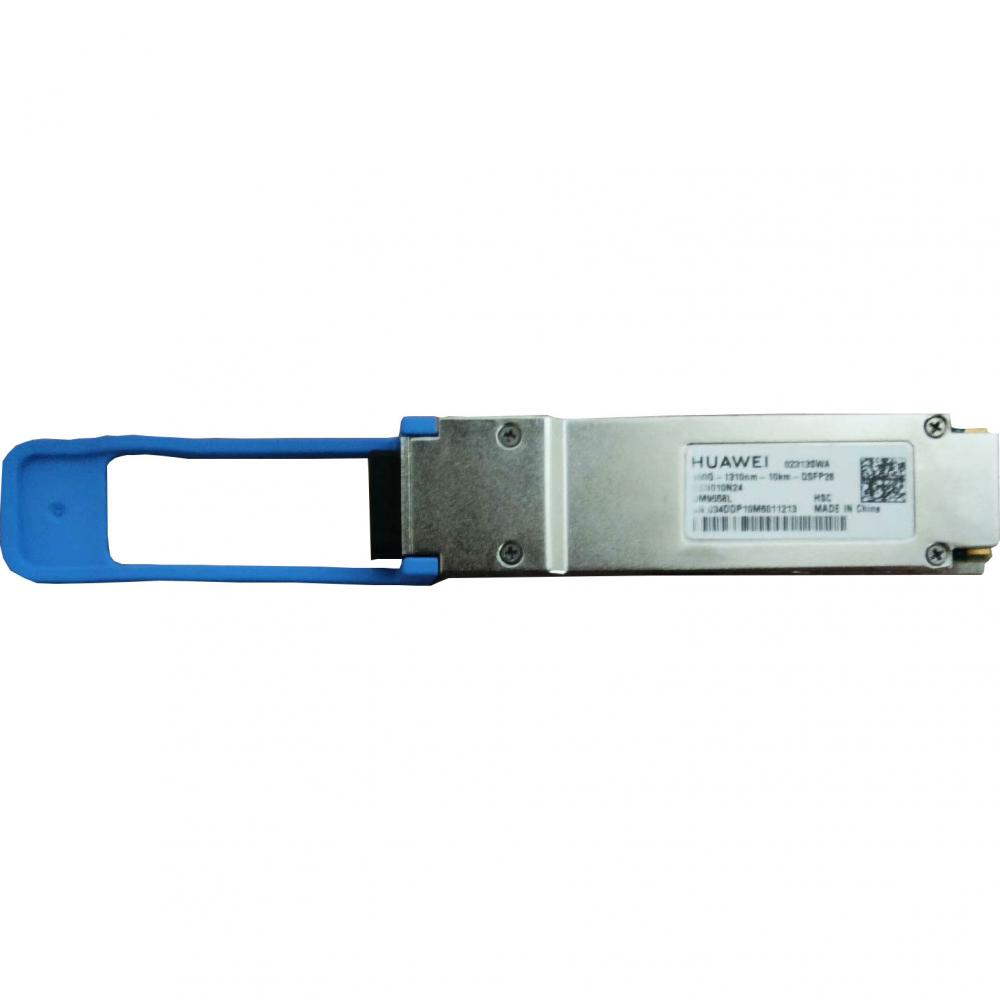

Huawei QSFP28 100G LR4 Optical Module PN:02313SWA Model OSN010N24
¥1,420.00
促销价
¥1,420.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28 100G LR4 Optical Module PN:02313SWA Model OSN010N24
¥1,420.00
促销价
¥1,420.00
常规价格
Product Overview
Commercial-grade 100G LR4 single-mode optical transceiver PN 02313SWA, QSFP28 package, 4×25.7G NRZ four-channel CWDM DFB laser, wavelength range 1295.56~1309.14nm, duplex LC interface, max transmission distance 10km over G.652 single-mode fiber, compatible with enterprise switches and OSN OTN equipment.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02313SWA |
| Internal Model | OSN010N24 |
| Form Factor | QSFP28 Duplex LC Single-mode |
| Bit Rate | 100Gbps (4×25.7G NRZ) |
| Wavelength Band | 1295.56~1309.14nm CWDM 4 lanes |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Duplex LC/UPC |
| Grade | Commercial Temperature Grade |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $200.00 |
Core Features
✅ Standard QSFP28 compact package, universal compatibility with mainstream 100G Ethernet switches and Huawei OSN OTN boards
✅ Four-channel 1310-band CWDM parallel DFB laser, stable 10km same-city cross-building transmission
✅ Blue pull tab, industry standard identifier for 10km LR4 single-mode modules
✅ Standard duplex LC optical port, matches common single-mode LC simplex fiber jumpers
✅ Complete DDM digital diagnostic monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
Application Scenarios
Enterprise park cross-building 100G backbone networking, medium cloud data center cross-floor aggregation, financial intra-city branch transmission, commercial campus OTN access layer deployment, low-cost 10km single-mode fiber reconstruction projects.
