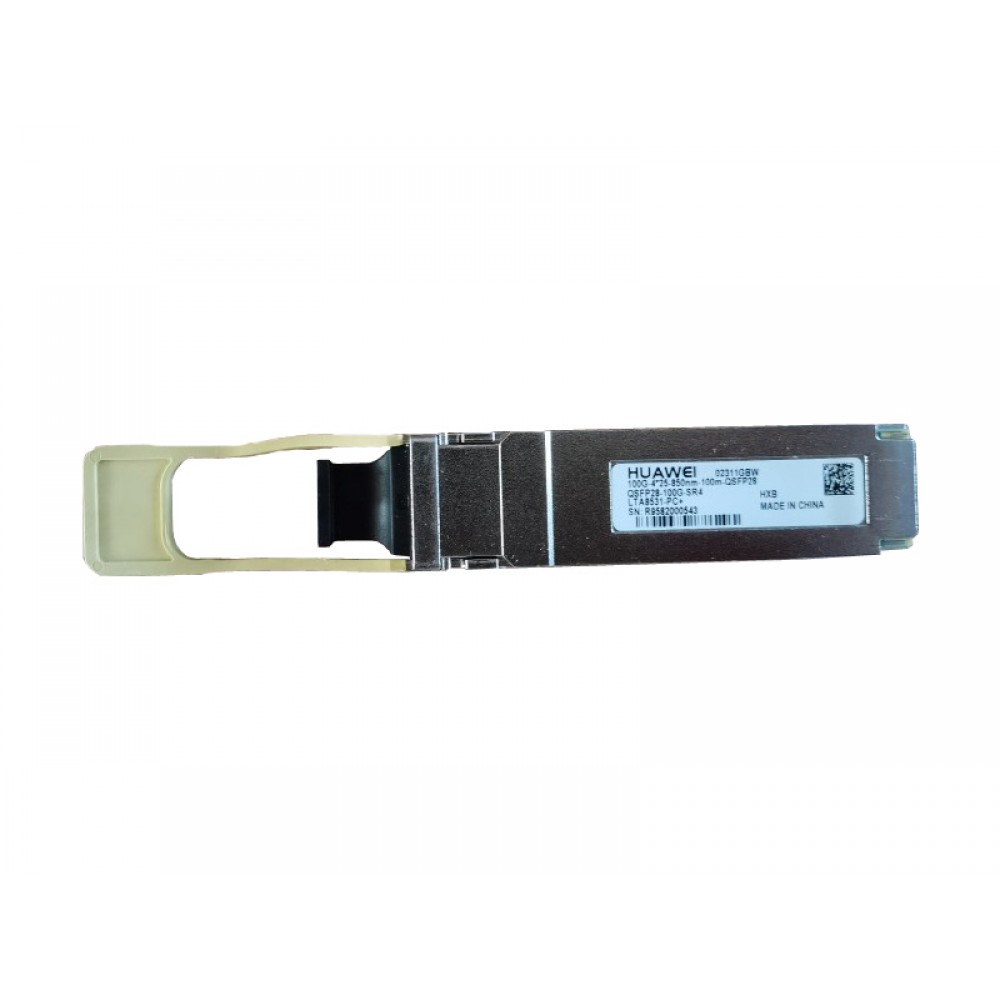

Huawei QSFP28 100G SR4 100m Multi-mode Optical Module PN:02311GBW
¥1,780.00
促销价
¥1,780.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28 100G SR4 100m Multi-mode Optical Module PN:02311GBW
¥1,780.00
促销价
¥1,780.00
常规价格
Product Overview
100GBASE-SR4 short-reach parallel multi-mode optical module PN:02311GBW, QSFP28 package, 850nm 4-channel VCSEL parallel, MPO-12 array fiber interface, max transmission distance 100m over OM4 multi-mode fiber, mainstream low-cost short-range interconnection optical module for high-density cloud data center cabinet interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02311GBW |
| Model | QSFP28-100G-SR4 |
| Form Factor | QSFP28 MPO12 Multi-mode Parallel |
| Bit Rate | 100Gbps |
| Wavelength | 850nm VCSEL 4-channel parallel |
| Fiber Type | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Reach | 70m (OM3), 100m (OM4) |
| Interface | MPO-12 Female |
| Pull Tab | Light Beige |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $250.00 |
Core Features
✅ Standard hot-swappable QSFP28 package, compatible with all mainstream 100G leaf-spine data center switches
✅ 850nm four-channel parallel VCSEL design, low cost for cabinet internal short-distance wiring
✅ MPO-12 array fiber port, high-density integrated wiring, effectively reducing cabinet cable clutter
✅ Built-in full DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
✅ Light beige pull tab for quick on-site identification of 100G SR4 multi-mode modules
Application Scenarios
Large cloud data center cabinet row-to-row high-density inter-switch links, medium enterprise computer room short-distance high-speed networking, storage area network (SAN) internal cabinet interconnection, campus core machine room short-range convergence transmission.
