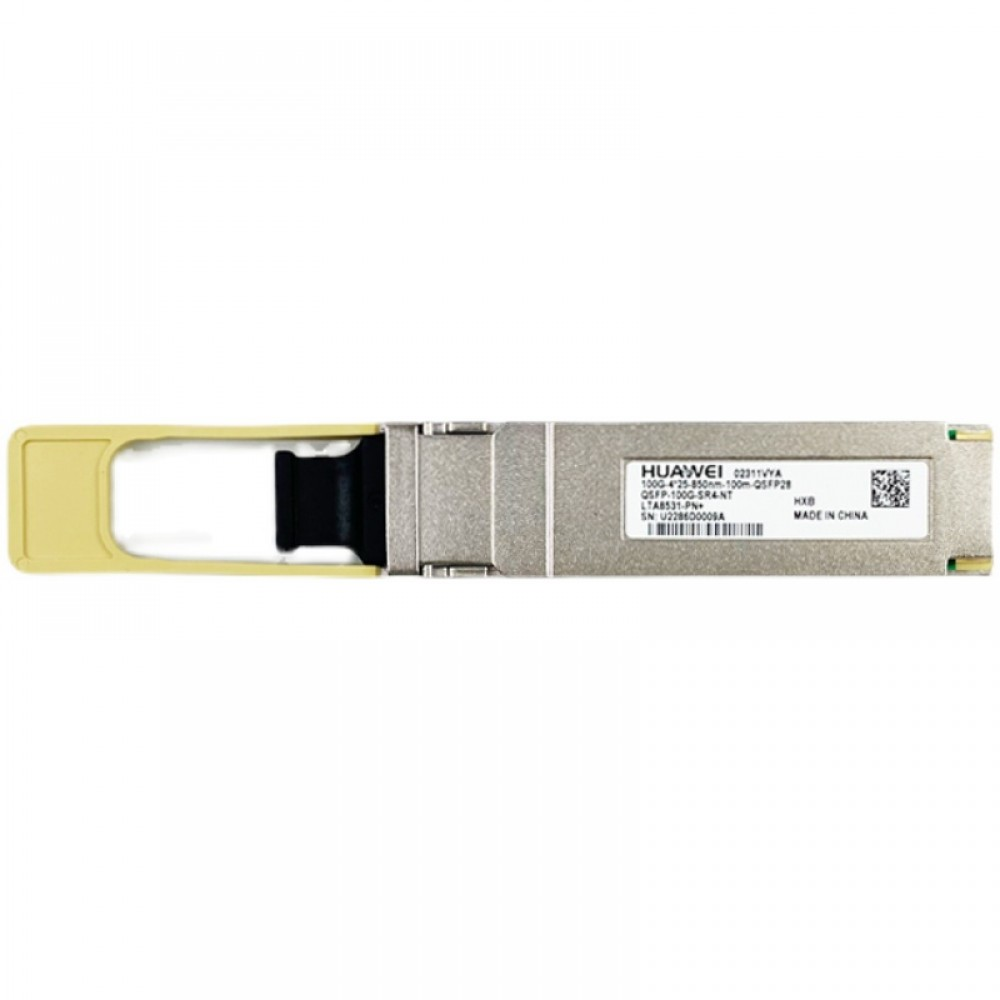

Huawei QSFP28-100G-SR4 ISP Special Version Optical Module PN:02311VYA
¥1,740.00
促销价
¥1,740.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28-100G-SR4 ISP Special Version Optical Module PN:02311VYA
¥1,740.00
促销价
¥1,740.00
常规价格
Product Overview
100GBASE-SR4 parallel multi-mode optical module PN:02311VYA, QSFP28 package, 4×25G 850nm VCSEL parallel array, MPO-12 interface, 100m transmission over OM4 multi-mode fiber, customized ISP dedicated version for internet service provider data center mass deployment.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02311VYA |
| Model | QSFP28-100G-SR4 (ISP customized) |
| Form Factor | QSFP28 MPO12 Multi-mode Parallel |
| Bit Rate | 100Gbps (4×25G) |
| Wavelength | 850nm band 4-channel VCSEL parallel |
| Fiber Type | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Reach | 70m (OM3), 100m (OM4) |
| Interface | MPO-12 Female |
| Pull Tab | Light Yellow |
| Scenario | ISP Internet Data Center Dedicated |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $245.00 |
Core Features
✅ Standard hot-swappable QSFP28 package, compatible with mainstream 100G leaf-spine data center switches
✅ ISP customized industrial optimization, enhanced heat dissipation and long-time stable operation for 24/7 full-load IDC
✅ Four-channel parallel VCSEL design, low cost mass deployment solution for short-distance cabinet interconnection
✅ MPO-12 high-density array fiber port, match large ISP data center integrated wiring cabinets
✅ Complete DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
Application Scenarios
Large internet operator self-built cloud data center cabinet interconnection, ISP mass new IDC construction projects, high-density leaf-spine network large-scale deployment, CDN node short-distance 100G convergence.
