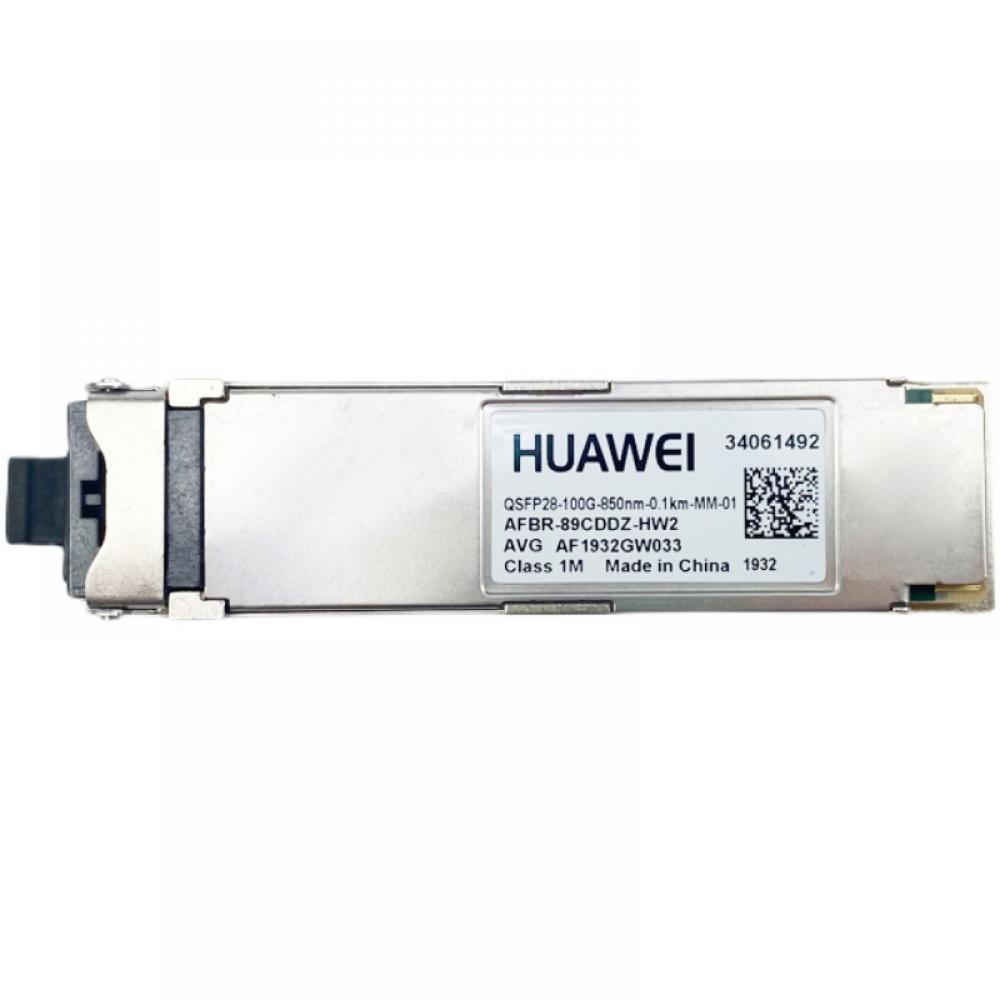

Huawei QSFP28 100G SR4 MM Optical Module PN:34061492
¥2,820.00
促销价
¥2,820.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28 100G SR4 MM Optical Module PN:34061492
¥2,820.00
促销价
¥2,820.00
常规价格
Product Overview
100GBASE-SR4 short-reach multi-mode optical transceiver PN 34061492, QSFP28 package, 850nm 4-channel VCSEL parallel laser, MPO interface, max transmission distance 100m over OM4 multi-mode fiber, for high-density intra-data center rack interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34061492 |
| Standard | 100GBASE-SR4 |
| Form Factor | QSFP28 MPO Multi-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength | 850nm 4-channel VCSEL parallel laser |
| Tx Optical Power | -8.4dBm ~ +2.4dBm |
| Rx Sensitivity | -10.3dBm |
| Fiber Type | OM4 Multi-mode Fiber (MMF) |
| Max Reach | 0.1km (100m) |
| Interface | 12-core MPO female |
| Condition | Factory New Sealed Multi-pack |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $395.00 |
Core Features
✅ Standard QSFP28 universal package, compatible with all mainstream 100G data center switches
✅ Low-cost 850nm VCSEL multi-mode laser, low power consumption, stable 100m rack-to-rack transmission
✅ Yellow pull tab, standard identification for SR4 multi-mode short-reach module
✅ MPO parallel optical port, support high-density multi-fiber trunk cabling inside data center
✅ Complete DDM digital diagnostic monitoring, real-time read module temperature, transmit/receive optical power and laser bias current
Application Scenarios
Cloud data center cabinet-to-cabinet short-distance interconnection, same-room server aggregation leaf-spine switch networking, enterprise small-scale 100G short-distance switching networking, low-cost intra-data center fiber reconstruction.
