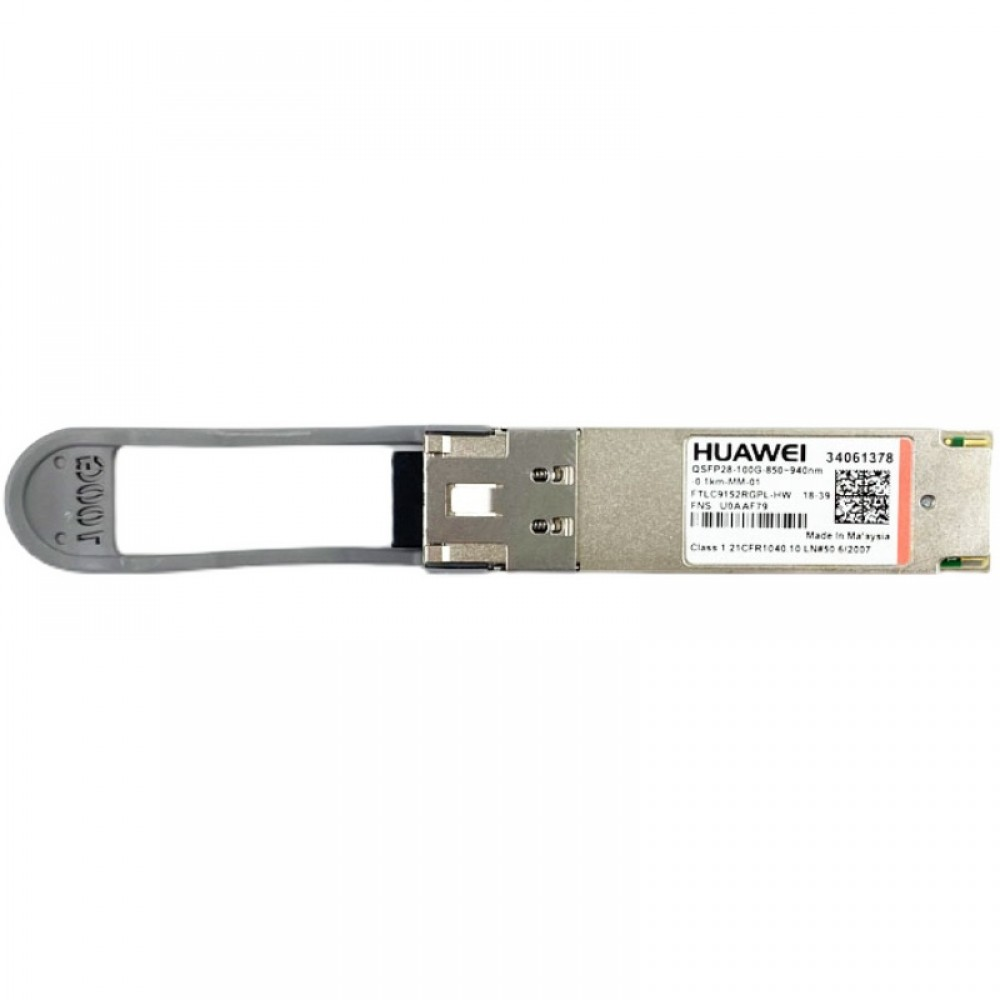

Huawei QSFP28-100G-SR4 Multi-mode Optical Module PN:34061378
¥4,440.00
促销价
¥4,440.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP28-100G-SR4 Multi-mode Optical Module PN:34061378
¥4,440.00
促销价
¥4,440.00
常规价格
Product Overview
100GBASE-SR4 parallel multi-mode optical transceiver PN:34061378, QSFP28 package, gray pull tab, model FTLC9152RGPL-HW, 850~940nm 4-channel VCSEL array, MPO-12 interface, max transmission distance 100m over OM4 multi-mode fiber, mainstream low-cost module for new data center leaf-spine cabinet interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34061378 |
| Vendor Model | FTLC9152RGPL-HW |
| Model | QSFP28-100G-SR4 |
| Form Factor | QSFP28 MPO12 Multi-mode Parallel |
| Bit Rate | 100Gbps (4×25G parallel) |
| Wavelength | 850~940nm 4-channel VCSEL parallel |
| Fiber Type | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Reach | 70m (OM3), 100m (OM4) |
| Interface | MPO-12 Female |
| Pull Tab | Gray |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $620.00 |
Core Features
✅ Standard hot-swappable QSFP28 package, compatible with all mainstream 100G data center leaf-spine switches
✅ Finisar original chip solution, stable long-term full-load operation for large-scale IDC
✅ Four-channel parallel VCSEL low-cost design, mass deployment preferred short-range optical module
✅ MPO-12 high-density array fiber port, matching large cabinet integrated wiring systems
✅ Complete DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
Application Scenarios
New cloud data center cabinet row-to-row high-density inter-switch links, medium enterprise newly-built computer room 100G short-distance networking, storage SAN new construction projects, campus core machine room low-cost short-range convergence.
