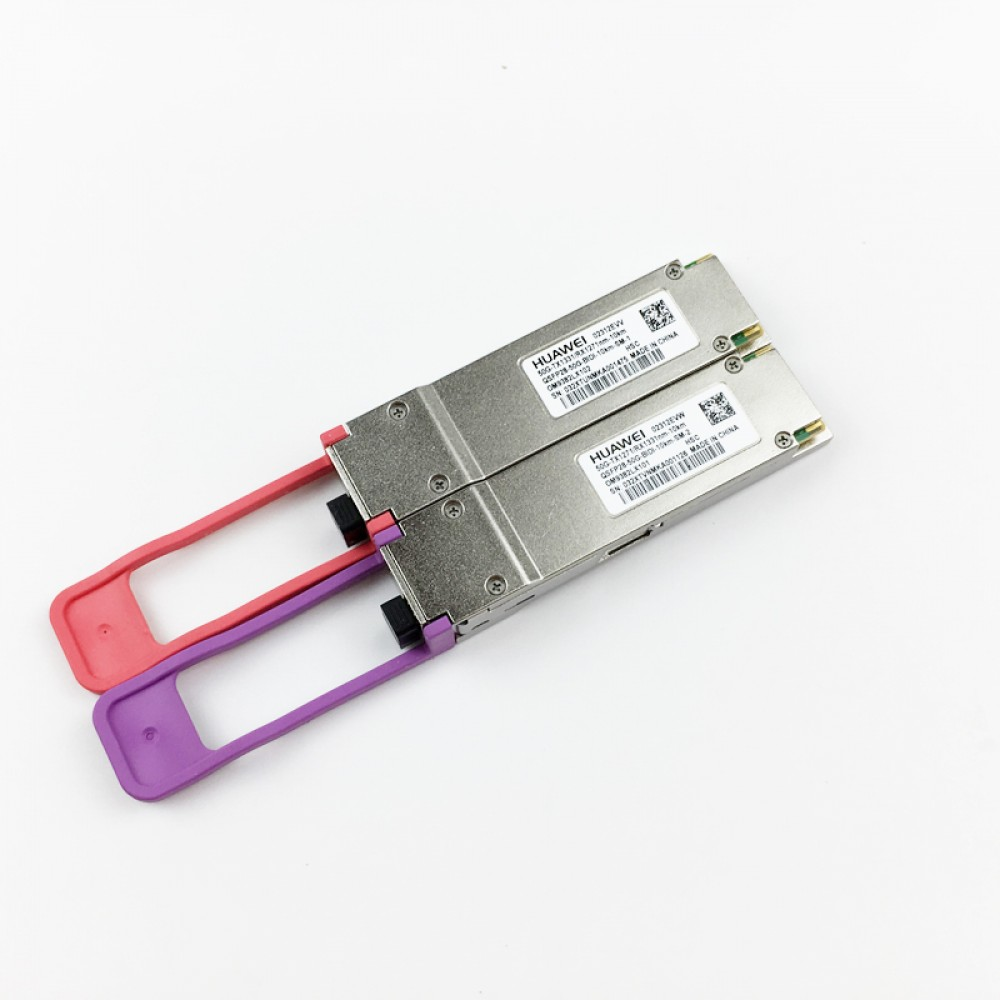

Huawei QSFP28 50G BiDi 10km Single-mode Optical Module PN:02312EVW
¥14,380.00
促销价
¥14,380.00
常规价格
Product Overview
50G single-fiber bidirectional BiDi QSFP28 optical module PN:02312EVW, paired two-way wavelength design (1271nm TX / 1331nm RX & 1331nm TX / 1271nm RX), duplex LC single-fiber interface, max transmission distance 10km over G.652 single-mode fiber, saves half fiber resources for 5G fronthaul and data center access networking.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02312EVW |
| Form Factor | QSFP28 LC Single-fiber BiDi SMF |
| Bit Rate | 50Gbps |
| Wavelength Pair | A side: 1271nm TX, 1331nm RX; B side: 1331nm TX, 1271nm RX |
| Tx Optical Power | -4.5 ~ +4.2dBm |
| Rx Sensitivity | ≤ -8.9dBm |
| Max Reach | 10km G.652 Single-mode Fiber |
| Fiber Type | G.652 SMF |
| Interface | LC/UPC Single-fiber BiDi |
| Pull Tab | Red (1271TX) / Purple (1331TX) |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $2000.00 |
Core Features
✅ Standard hot-swappable QSFP28 package, compatible with 5G DU/AAU, edge cloud access switches
✅ Single-fiber bidirectional transmission, one single fiber realizes bidirectional 50G transmission, cuts fiber cable cost by half
✅ Paired wavelength grouping, must be used in matching red-purple pull tab pairs
✅ Compact LC port, compatible with standard single-mode LC simplex jumpers
✅ Full DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
✅ Two-color pull tabs for quick on-site pairing identification
Application Scenarios
5G mobile fronthaul fiber resource limited sites, industrial park fiber insufficient access convergence, small edge data center 50G inter-switch links, campus access network fiber-saving transformation projects.
