Key Specifications
Huawei SFP+ 16G SR 100m Multi-mode Optical Module PN:34060779
¥590.00
促销价
¥590.00
常规价格
Product Overview

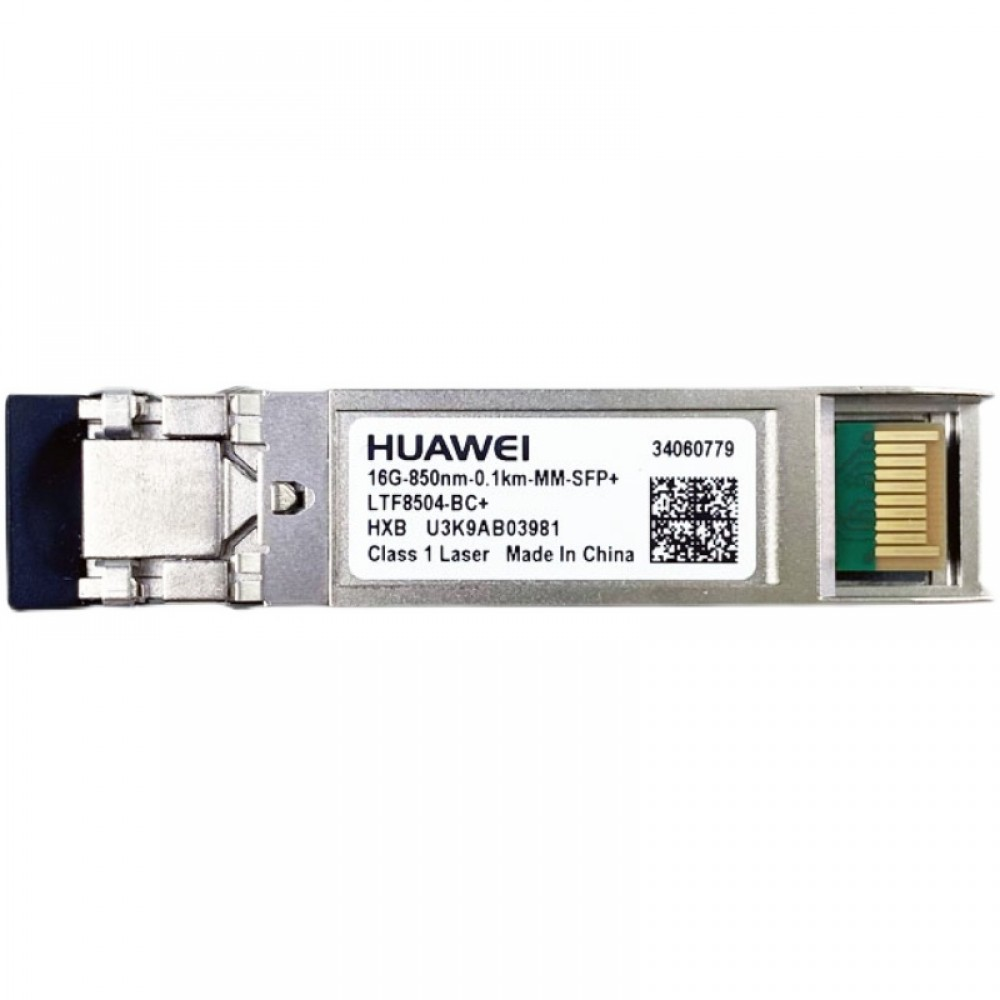

Duplex short-reach multi-mode SFP+ optical module PN 34060779, 14.025Gbps transmission rate, 850nm VCSEL laser, LC dual fiber interface, max transmission distance 100m over OM4 multi-mode fiber, designed for storage SAN network short-range interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060779 |
| Form Factor | SFP+ Duplex LC Dual Fiber MMF |
| Bit Rate | 14.025Gbps (16G Fibre Channel) |
| Wavelength | 850nm TX/RX |
| Transmit Power | -7.8dBm ~ 0dBm |
| Receive Sensitivity | -10.5dBm |
| Max Reach | 100m (0.1km) OM4 Multi-mode Fiber |
| Fiber Type | Multi-mode MMF |
| Origin | Made in China |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $85.00 |
Core Features
✅ Standard SFP+ compact package, plug-and-play compatible with 16G FC storage switches, SAN storage array equipment with SFP+ slots
✅ 850nm short-wave VCSEL laser, low-cost short-distance interconnection solution for storage cabinet internal links
✅ Complete DDM digital real-time monitoring of temperature, transmit/receive optical power and bias current
✅ Hot-swappable metal housing, easy on-site replacement without powering down devices
✅ Duplex LC optical port, matched with OM4 multi-mode fiber patch cords
Application Scenarios
SAN storage network intra-cabinet server interconnection, 16G Fibre Channel storage short-distance fiber links, enterprise storage cabinet cross-rack transmission, data center storage area network upgrade projects.
