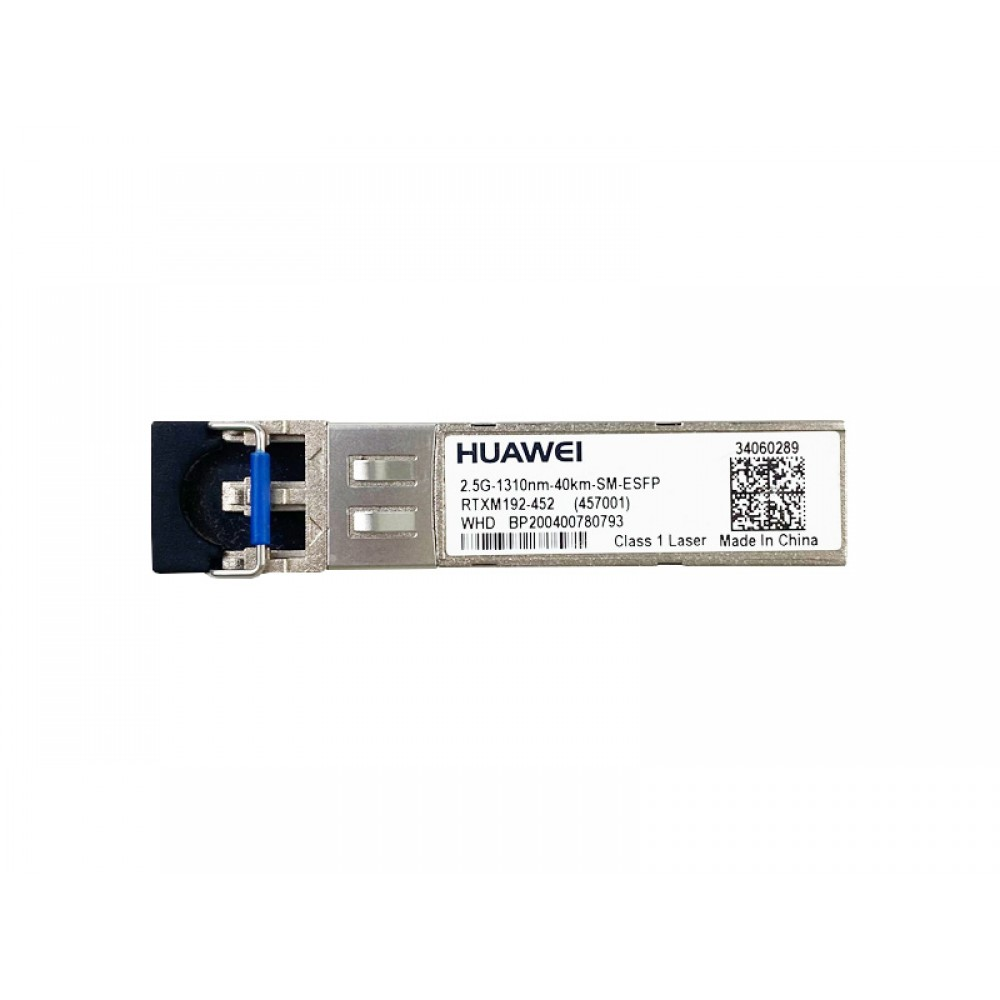

Huawei STM16 40km eSFP Single-mode Optical Module 34060289
¥556.00
促销价
¥556.00
常规价格
跳至产品信息
Key Specifications
Huawei STM16 40km eSFP Single-mode Optical Module 34060289
¥556.00
促销价
¥556.00
常规价格
Product Overview
2.5G STM16 SDH dedicated dual-fiber single-mode optical module, 1310nm wavelength, LC duplex interface, high receiving sensitivity, supports 40km transmission over OS2 single-mode fiber, used for medium-long distance SDH transmission backbone links.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060289 |
| Form Factor | eSFP Duplex LC |
| Rate | STM16 (2.488G / 2.5G SDH) |
| Distance | 40km OS2 Single-mode Fiber |
| Fiber Type | Single-mode SM |
| Wavelength | 1310nm TX/RX |
| Transmit Optical Power | -2 ~ 3 dBm |
| Receive Sensitivity | -29 dBm |
| Connector | LC Duplex |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years |
| Unit Price | $80.00 |
Core Features
✅ Specialized STM16 2.5G SDH rate, fully matched with optical transmission equipment
✅ Moderate high transmit power + ultra-high receiving sensitivity, strong anti-attenuation capacity, stable 40km fiber transmission
✅ Standard 1310nm medium-reach single-mode design, mature carrier-grade transmission scheme
✅ Standard eSFP package, plug-and-play, compatible with all Huawei SDH eSFP service slots
✅ Duplex LC dual-fiber bidirectional structure, mainstream metro transmission backbone module
✅ Industrial wide-temperature chip, stable operation for outdoor communication stations
✅ Global spot stock, fast worldwide delivery, official 3-year quality warranty
Application Scenarios
County-level metro SDH backbone networking, cross-town private line transmission, power grid medium-long distance control communication, railway trunk transmission, operator medium-distance aggregation transmission.
