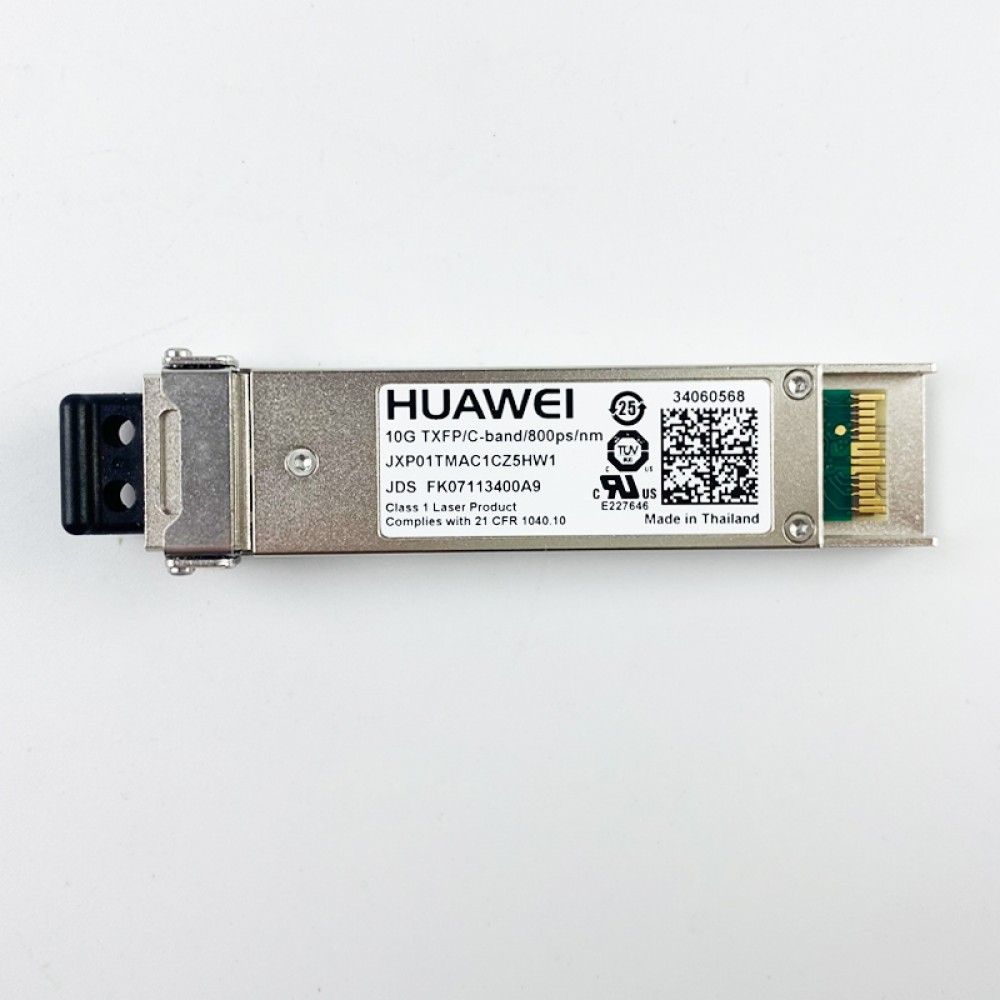

Huawei TXFP 10G C-band DWDM 40km Optical Module PN:34060568
¥1,860.00
促销价
¥1,860.00
常规价格
跳至产品信息
Key Specifications
Huawei TXFP 10G C-band DWDM 40km Optical Module PN:34060568
¥1,860.00
促销价
¥1,860.00
常规价格
Product Overview
DWDM dense wavelength division multiplexing TXFP optical module PN 34060568, rate range 9.95~11.3Gbps, C-band DWDM laser, duplex LC single-mode fiber, dispersion tolerance 800ps/nm, max transmission distance 40km over OS2 single-mode fiber, specially used for carrier metro DWDM wavelength division transmission systems.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060568 |
| Form Factor | TXFP Duplex LC Dual Fiber SMF |
| Rate | 9.95Gbps ~ 11.3Gbps |
| Band | C Band DWDM |
| Dispersion Tolerance | 800ps/nm |
| Max Distance | 40km OS2 Single-mode Fiber |
| Fiber Type | Single-mode SMF |
| Origin | Made in Thailand |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $260.00 |
Core Features
✅ Standard C-band DWDM wavelength grid, matched with DWDM multiplexer/demultiplexer to realize multi-service single fiber simultaneous transmission, greatly saving fiber core resources
✅ Large dispersion tolerance design (800ps/nm), strong anti-dispersion ability, stable transmission on 40km long fiber links
✅ TXFP hot-swappable package, plug-and-play compatible with Huawei DWDM transmission equipment
✅ High-stability locked DFB laser, low wavelength drift, meets carrier-grade transmission index requirements
✅ Duplex LC optical port, matched with OS2 single-mode fiber jumpers
✅ Built-in full DDM digital real-time monitoring of temperature, transmit/receive optical power and bias current
Application Scenarios
Operator metropolitan DWDM backbone network, multi-service converged transmission of enterprise park long-distance links, data center interconnection DWDM system within 40km, wavelength division trunk reconstruction projects.
