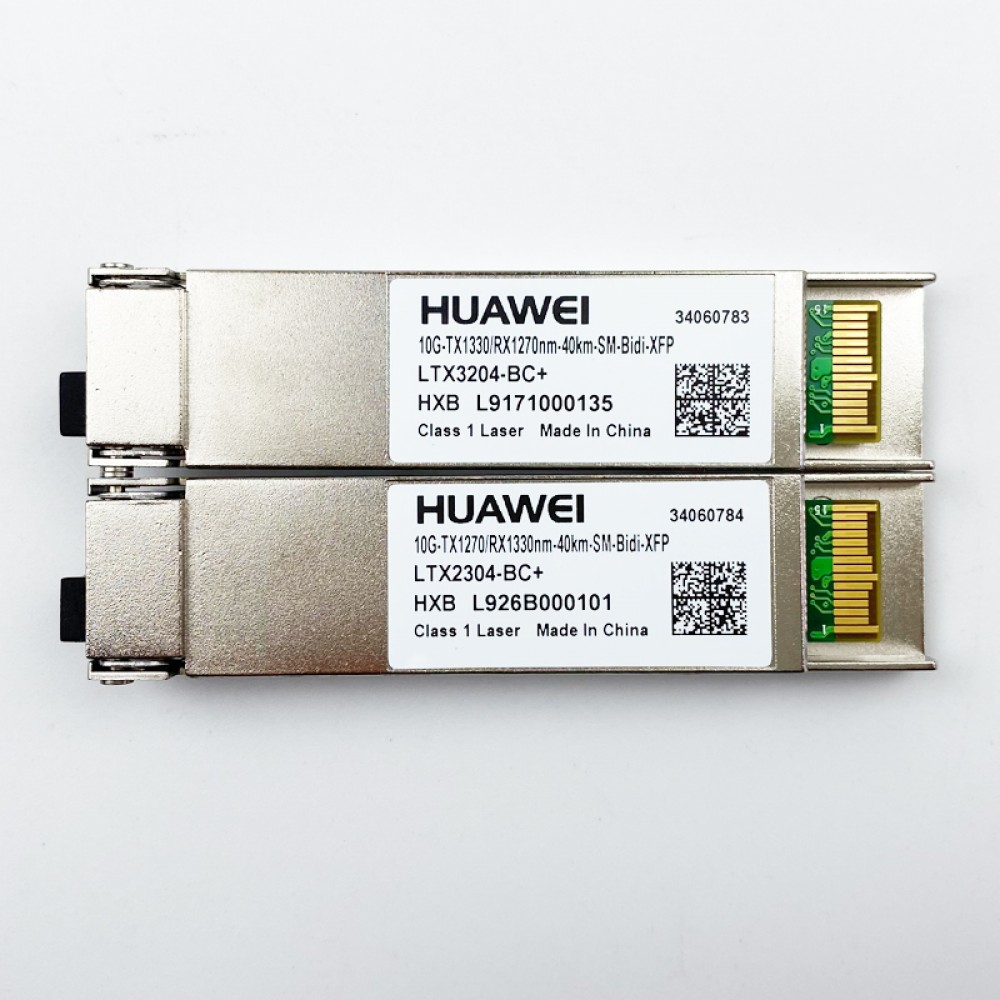

Huawei XFP 10G BiDi Single-mode 40km Optical Transceiver Pair PN:34060783 & 34060784
¥1,636.00
促销价
¥1,636.00
常规价格
跳至产品信息
Key Specifications
Huawei XFP 10G BiDi Single-mode 40km Optical Transceiver Pair PN:34060783 & 34060784
¥1,636.00
促销价
¥1,636.00
常规价格
Product Overview
Bidirectional single-fiber XFP optical module pair, rate range 9.95~11.35Gbps, single LC port realizes bidirectional transmit & receive over one G.652 single-mode fiber, max transmission distance 40km. Two wavelengths matched in pairs:
- PN 34060783: TX 1330nm / RX 1270nm
- PN 34060784: TX 1270nm / RX 1330nm
Suitable for legacy XFP-slot routers and transmission equipment, saves fiber core resources.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN Pair | 34060783 (TX1330/RX1270) + 34060784 (TX1270/RX1330) |
| Form Factor | XFP Single LC BiDi SMF |
| Rate | 9.95Gbps ~ 11.35Gbps |
| Tx Optical Power | 0~5dBm |
| Receiver Sensitivity | -19dBm |
| Fiber Type | G.652 Single-mode Fiber |
| Max Distance | 40km |
| Origin | Made in China |
| Condition | Factory New Sealed Pair |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price (1 Pair) | $230.00 |
Core Features
✅ Single-fiber bidirectional transmission design, only 1 single-mode fiber needed for two-way data transmission, cuts fiber resource cost by half
✅ Standard large XFP package, plug-and-play compatible with older Huawei core routers & transmission frames with XFP slots
✅ High transmit optical power (up to 5dBm) & high receiving sensitivity (-19dBm), strong tolerance for long fiber attenuation
✅ Built-in complete DDM digital real-time monitoring of temperature, transmit/receive optical power and bias current
✅ Single LC optical interface, matched with G.652 OS2 single-mode fiber patch cords
✅ Must be used in matched wavelength pairs, cannot work alone
Application Scenarios
Operator county-town 40km metro trunk with insufficient fiber cores, enterprise park long-distance interconnection fiber resource shortage renovation, legacy XFP transmission equipment single-fiber bidirectional upgrade, remote site access fiber limited projects.
