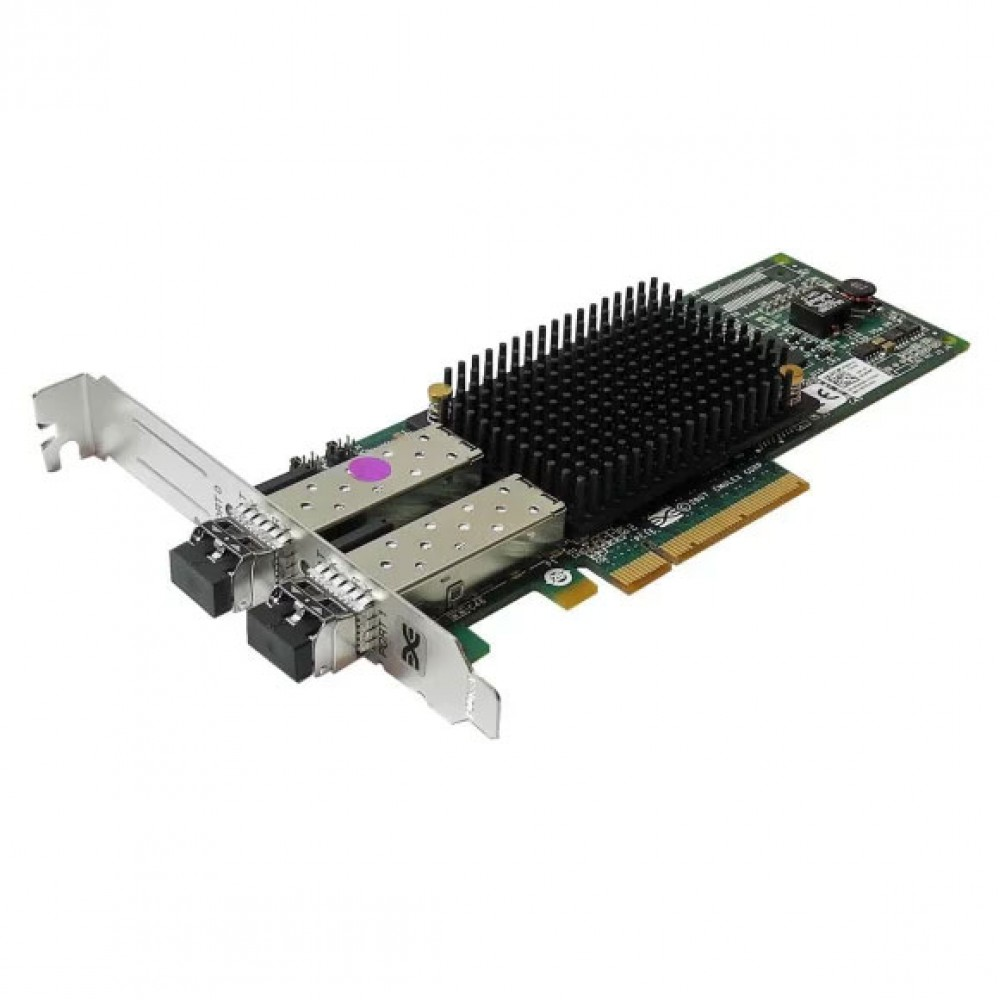

IBM 10N9824 (FRU 00E0806) Emulex LPe12002 Dual-port 8Gb Fibre Channel HBA For IBM Power Systems Full Datasheet
¥1,528.00
促销价
¥1,528.00
常规价格
跳至产品信息
IBM 10N9824 (FRU 00E0806) Emulex LPe12002 Dual-port 8Gb Fibre Channel HBA For IBM Power Systems Full Datasheet
¥1,528.00
促销价
¥1,528.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Emulex Legacy Storage HBA Adapter |
| Main PN | 10N9824 |
| Interchangeable FRU | 00E0806 |
| Chip Vendor | Emulex |
| Model Series | LPe12002 Dual-port 8G Fibre Channel HBA |
| Supported Server | IBM Power AIX Rack/Tower Servers (Power Systems) |
| Bus Interface | PCIe 2.0 x8 |
| Port Count | Dual independent SFP+ FC ports |
| FC Line Rate | 8Gbps Fibre Channel (8Gb FC) |
| Supported Transceiver | 8G SW SFP+ short-wave optical module |
| Supported Fiber | OM2 / OM3 Multi-mode fiber |
| Max Transmission Distance | 50m (OM2), 100m (OM3) |
| Heat Dissipation | Large vertical black fin passive heat sink, fanless silent design |
| Bracket | Standard full-height metal bracket pre-installed, low-profile bracket optional |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $215.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 215 × 7.2 = 1548; 1548 − 20 = 1528 RMB per card |
Core Product Features
- Emulex LPe12002 dual-port 8G FC storage HBA customized exclusively for IBM Power Systems AIX servers, certified for legacy IBM DS storage arrays and Brocade 8G FC SAN switches, dedicated Power AIX firmware.
- Dual independent 8G Fibre Channel ports, full-duplex transmission, support dual-fabric redundant links to avoid single point of failure for Power virtualization LPAR clusters.
- PCIe 2.0 x8 bus interface, stable throughput for legacy Power storage environments, support SAN boot, MPIO multi-path IO, FCP/SCSI-FC storage protocols, fully compatible with IBM HMC management console.
- Large vertical black fin passive heat sink, fanless zero-noise operation, stable 24/7 continuous heavy-load operation without fan failure risk, fit Power rack server internal airflow design.
- Standard full-height metal bracket pre-assembled, detachable low-profile half-height bracket available separately for compact 2U Power rack deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring of optical modules, convenient for legacy Power SAN equipment maintenance and spare replacement.
Typical Application Scenarios
- IBM Power AIX virtualization cluster, dual 8G FC redundant uplink to old-generation IBM DS storage arrays, ERP, database LPAR storage access.
- Legacy Power data center SAN hardware refresh, replace aging 4G dual-port HBA to upgrade storage bandwidth, low-cost reconstruction of existing 8G SAN fabric.
- Production disaster recovery architecture, dual-port separate two independent SAN fabrics to isolate production and backup data traffic on Power servers.
- Not applicable: Only for IBM Power AIX servers, incompatible with IBM System x x86 Windows/Linux servers; only supports multi-mode short-wave 8G SFP+, cannot use long-distance single-mode FC transceivers; bandwidth lower than 16G HBA, not recommended for high IO modern core production business.
