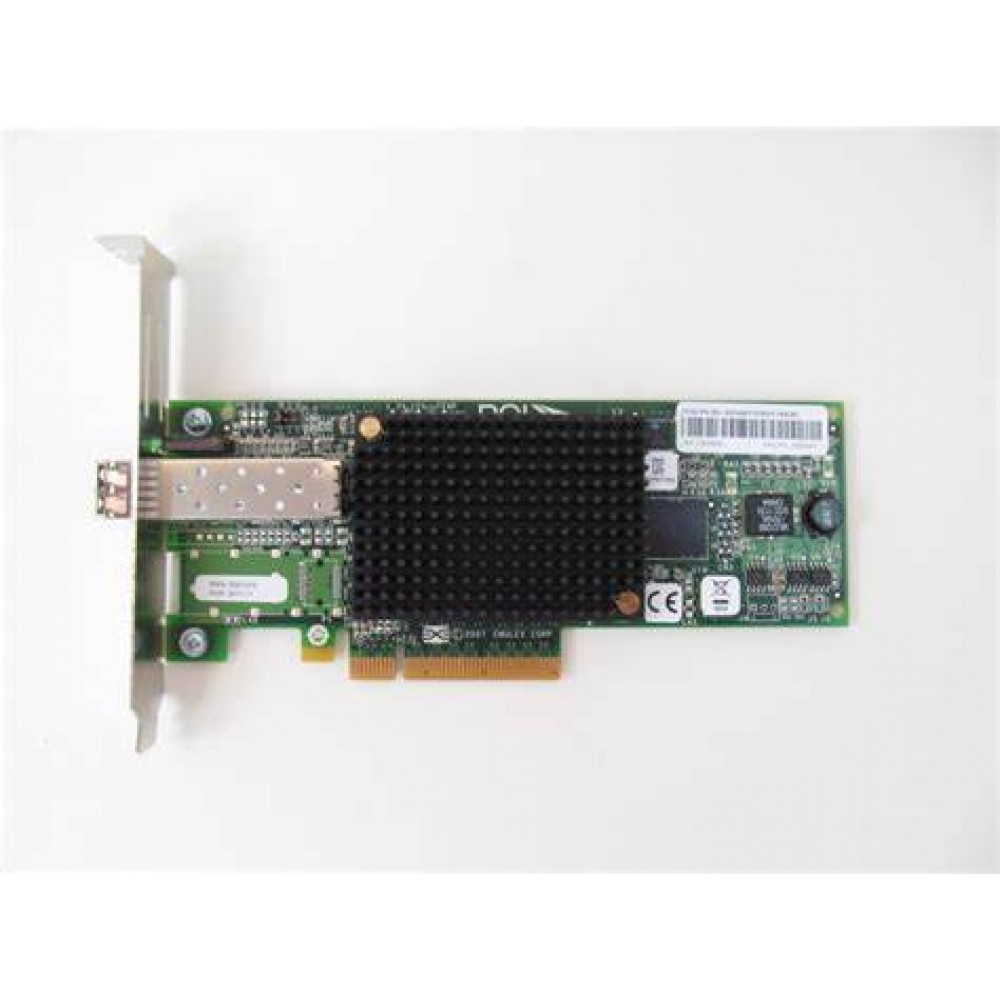

IBM 42D0485 (FRU 42D0491 / 42D0486) Emulex LPe12000 Single-Port 8Gb Fibre Channel HBA PCIe2.0 x8 Full Datasheet
¥808.00
促销价
¥808.00
常规价格
跳至产品信息
IBM 42D0485 (FRU 42D0491 / 42D0486) Emulex LPe12000 Single-Port 8Gb Fibre Channel HBA PCIe2.0 x8 Full Datasheet
¥808.00
促销价
¥808.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Emulex Entry Single-port Legacy Storage HBA Adapter |
| Main PN | 42D0485 |
| Interchangeable FRU | 42D0491, 42D0486 |
| Chip Vendor | Emulex |
| Model Series | LPe12000 Single-port 8G Fibre Channel HBA |
| Supported Server | IBM System x x86 Rack & Tower Servers |
| Bus Interface | PCIe 2.0 x8 |
| Port Count | Single independent SFP+ FC port |
| FC Line Rate | 8Gbps Fibre Channel (8Gb FC) |
| Supported Transceiver | 8G SW SFP+ short-wave optical module |
| Supported Fiber | OM2 / OM3 Multi-mode fiber |
| Max Transmission Distance | 50m (OM2), 100m (OM3) |
| Heat Dissipation | Large black dense dot passive heat sink, fanless silent design |
| Bracket | Standard full-height metal bracket pre-installed, low-profile bracket optional accessory |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $115.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 115 × 7.2 = 828; 828 − 20 = 808 RMB per card |
Core Product Features
- Emulex LPe12000 single-port 8G FC entry storage HBA customized by IBM, exclusively certified for IBM System x x86 Windows/Linux servers, compatible with legacy IBM DS storage arrays and Brocade 8G FC SAN switches.
- Single independent 8G Fibre Channel port, full-duplex transmission, ultra-low cost solution for single-fabric backup server, test environment and legacy SAN spare replacement.
- PCIe 2.0 x8 bus interface, stable throughput for low/medium IO storage workloads, support SAN boot, MPIO multi-path IO, FCP/SCSI-FC storage protocols.
- Large black dot passive heat sink, fanless zero-noise operation, low power consumption, stable 24/7 continuous operation without fan failure risk, fit quiet office small rack servers.
- Standard full-height metal bracket pre-assembled, detachable low-profile half-height bracket available separately for compact 2U rack flexible deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring of optical modules, convenient for daily legacy SAN maintenance and fault replacement.
Typical Application Scenarios
- Entry-level IBM System x server single-link connect to legacy IBM DS storage, small enterprise backup server, file server low-bandwidth storage access.
- SAN test environment, auxiliary backup server single-fabric storage uplink, cost-sensitive small data center 8G SAN upgrade spare parts.
- Old server hardware replacement, replace failed 4G/8G single-port HBA without overall SAN architecture reconstruction.
- Limitations: Only for IBM System x x86 servers, incompatible with IBM Power AIX servers; only supports multi-mode short-wave 8G SFP+, cannot use long-distance single-mode FC transceivers; bandwidth lower than 16G HBA, not suitable for high IO core production business.
