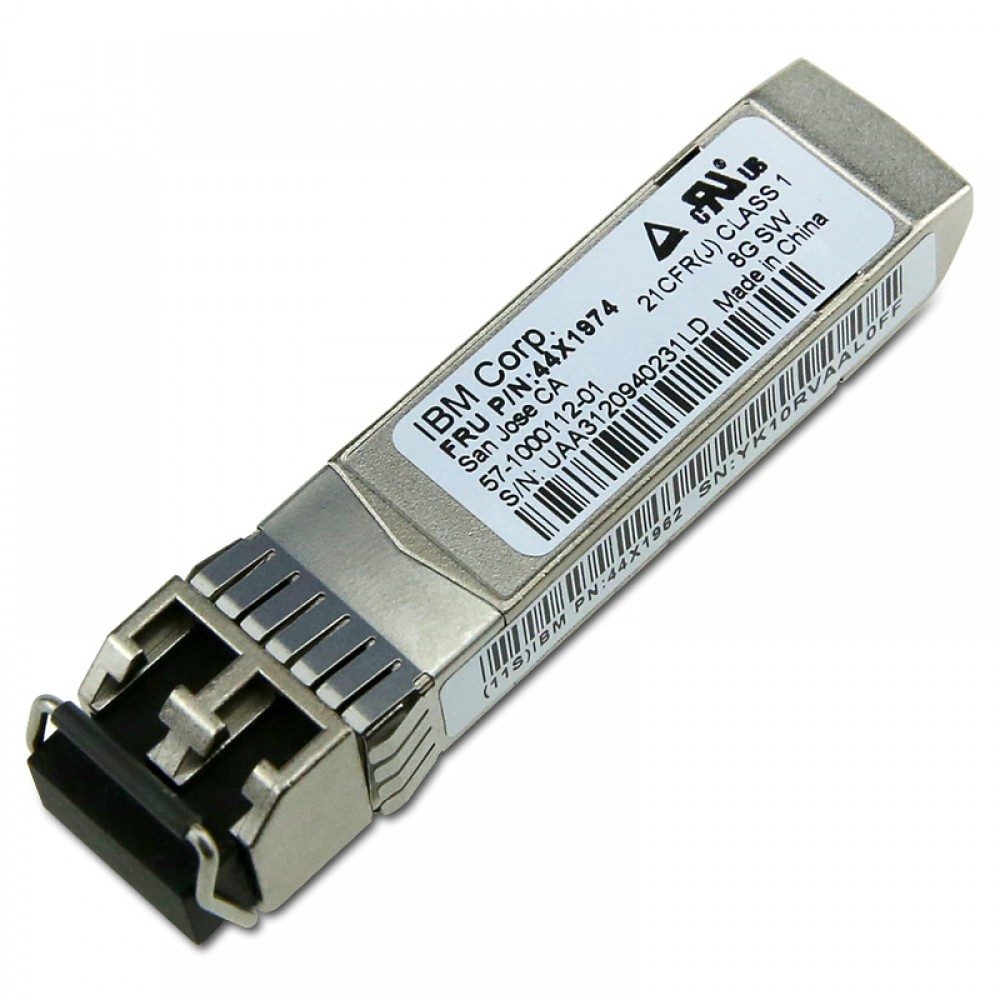

IBM 44X1962 (FRU 44X1970 / 44X1974) 8Gb FC SW SFP+ Fibre Channel Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original Brocade OEM SFP+ module branded IBM PN 44X1962, fully compatible with IBM Brocade FC SAN switches, storage HBA cards, Storwize storage controllers, zero hardware identification alarm on IBM enterprise SAN equipment.
2. Complies with FC-PI-5 Fibre Channel standard, 850nm VCSEL short-wave laser, stable 150m short-distance transmission over OM3 multi-mode fiber, specially optimized for storage SAN intra-cabinet interconnection.
3. Built-in complete DDM digital diagnostic monitoring circuit, real-time monitoring of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote SAN O&M fault diagnosis.
4. Hot-swappable plug-and-play SFP+ metal housing, independent heat sink design, excellent heat dissipation and anti-electromagnetic interference performance, supports 7×24h continuous stable operation in high-density storage IDC cabinets.
5. Multi-part-number interchangeability: 44X1962 / 44X1970 / 44X1974 can replace each other directly, simplify warehouse inventory management for storage projects.
6. Cost-effective short-wave 8G SAN interconnection solution, designed for Brocade SAN switch and IBM storage controller cross-link inside cabinet.

Typical Application Scenarios

1. IBM Brocade SAN switch, Storwize storage array controller short-distance 8G FC interconnection within 150m multi-mode fiber.
2. Blade server storage HBA card uplink to IBM FC SAN switch cabinet internal wiring.
3. Financial, medical core enterprise storage SAN backbone short-range transmission.
4. Not applicable: long-distance single-mode SAN fiber links, ordinary Ethernet network switches, non-Brocade/IBM storage devices may trigger compatibility alarms, 16G/32G high-speed FC optical transceivers.
