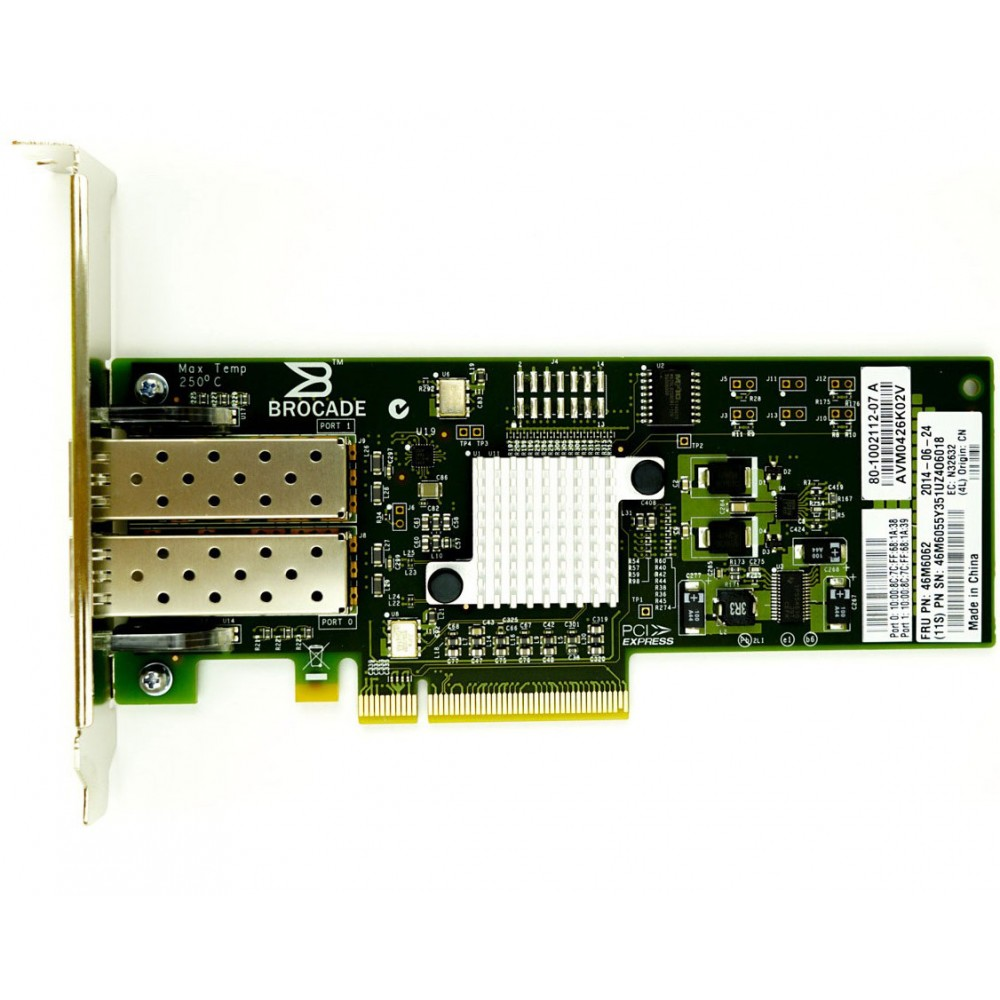

IBM 46M6062 (FRU 46M6052 / 46M6050) Brocade BR-825 Dual-Port 8Gb Fibre Channel HBA PCIe2.0 x8 Full Datasheet
¥1,850.00
促销价
¥1,850.00
常规价格
跳至产品信息
IBM 46M6062 (FRU 46M6052 / 46M6050) Brocade BR-825 Dual-Port 8Gb Fibre Channel HBA PCIe2.0 x8 Full Datasheet
¥1,850.00
促销价
¥1,850.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Brocade Mid-range Dual-port Legacy Storage HBA Adapter |
| Main PN | 46M6062 |
| Interchangeable FRU | 46M6052, 46M6050 |
| Chip Vendor | Brocade |
| Model Series | BR-825 Dual-port 8G Fibre Channel HBA |
| Supported Server | IBM System x x86 Rack & Tower Servers |
| Bus Interface | PCIe 2.0 x8 |
| Port Count | Dual independent SFP+ FC ports |
| FC Line Rate | 8Gbps Fibre Channel (8Gb FC) |
| Supported Transceiver | 8G SW SFP+ short-wave optical module |
| Supported Fiber | OM2 / OM3 Multi-mode fiber |
| Max Transmission Distance | 50m (OM2), 100m (OM3) |
| Heat Dissipation | Large white grid passive heat sink, fanless silent design |
| Bracket | Standard full-height metal bracket pre-installed, low-profile bracket optional accessory |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $260.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 260 × 7.2 = 1872; 1872 − 20 = 1852 RMB per card |
Core Product Features
- Brocade BR-825 dual-port 8G FC storage HBA customized by IBM, exclusively certified for IBM System x x86 Windows/Linux servers, compatible with legacy IBM DS storage arrays and Brocade 8G FC SAN switches.
- Dual independent 8G Fibre Channel ports, full-duplex transmission, support dual-fabric redundant links to eliminate single point of failure for virtualization clusters, medium enterprise legacy SAN reconstruction.
- PCIe 2.0 x8 bus interface, stable throughput for mid-tier storage workloads, support SAN boot, MPIO multi-path IO, FCP/SCSI-FC mainstream storage protocols.
- Large white grid passive heat sink, fanless zero-noise operation, stable 24/7 continuous heavy-load operation without fan failure risk, fit rack server front-to-back airflow design.
- Standard full-height metal bracket pre-assembled, detachable low-profile half-height bracket available separately for compact 2U rack flexible deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring of optical modules, convenient for daily legacy SAN operation & maintenance fault troubleshooting.
Typical Application Scenarios
- IBM System x Windows/Linux virtualization cluster, dual 8G FC redundant uplink to old-generation IBM DS storage arrays, ERP, database virtual machine storage access.
- Medium enterprise data center SAN hardware refresh, replace aging 4G dual-port HBA to upgrade storage bandwidth, low-cost reconstruction of existing 8G SAN fabric.
- Production disaster recovery architecture, dual-port separate two independent SAN fabrics to isolate production and backup data traffic.
- Limitations: Only for IBM System x x86 servers, incompatible with IBM Power AIX servers; only supports multi-mode short-wave 8G SFP+, cannot use long-distance single-mode FC transceivers; bandwidth lower than 16G HBA, not suitable for high IO modern core production business.
