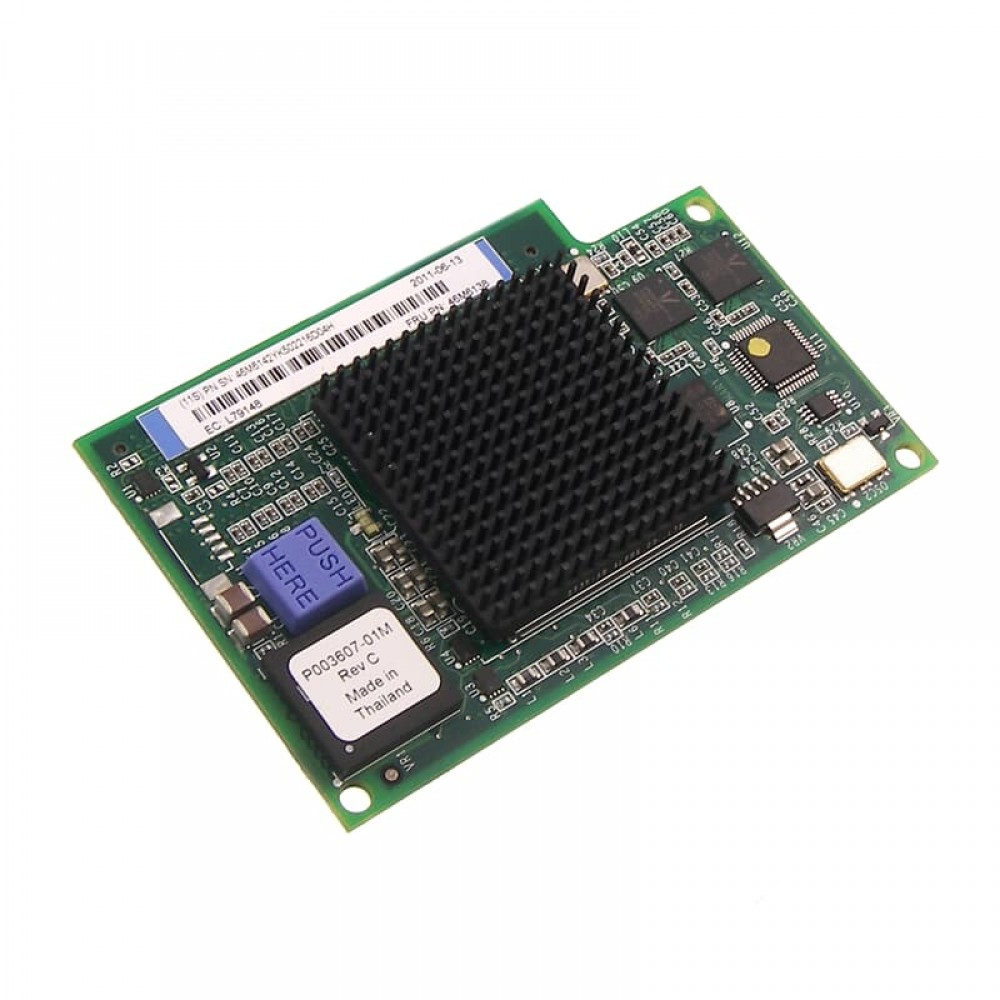

IBM 46M6138 (FRU 46M6140 / 46M6142) Emulex LPe12002 8Gb FC CIOv Dual-port Mezzanine HBA For BladeCenter Full Datasheet
¥916.00
促销价
¥916.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Emulex BladeCenter CIOv Mezzanine Storage HBA |
| Main PN | 46M6138 |
| Interchangeable FRU | 46M6140, 46M6142 |
| Chip Vendor | Emulex |
| Model Series | LPe12002 Dual-port 8G Fibre Channel CIOv Mezz Card |
| Supported Platform | IBM BladeCenter Blade Servers (CIOv expansion slot) |
| Form Factor | Dedicated BladeCenter CIOv mezzanine daughter card (no PCIe metal bracket) |
| Port Count | Dual internal FC SFP+ ports (transceivers sold separately) |
| FC Line Rate | 8Gbps Fibre Channel (8Gb FC) |
| Supported Transceiver | 8G SW SFP+ short-wave optical module |
| Supported Fiber | OM2 / OM3 Multi-mode fiber |
| Max Transmission Distance | 50m (OM2), 100m (OM3) |
| Heat Dissipation | Large black dense dot passive heat sink, fanless silent design |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $130.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 130 × 7.2 = 936; 936 − 20 = 916 RMB per card |
Core Product Features
- Emulex LPe12002 dual-port 8G FC CIOv mezzanine storage HBA customized exclusively for IBM BladeCenter blade servers, plugs into the CIOv internal expansion slot of BladeCenter blade nodes, no external PCIe bracket required.
- Dual independent 8G Fibre Channel ports, full-duplex transmission, support dual-fabric redundant SAN links to eliminate single point of failure for blade virtualization LPAR clusters, legacy BladeCenter SAN reconstruction.
- Optimized CIOv mezzanine edge connector matched with BladeCenter midplane, high signal integrity, stable throughput for entry/mid-tier storage, support SAN boot, MPIO multi-path IO, FCP/SCSI-FC storage protocols.
- Large black dot passive heat sink, fanless zero-noise operation, perfectly matched with BladeCenter chassis front-to-back airflow, stable 24/7 continuous operation under dense rack high temperature environment.
- Unified firmware compatible with IBM BladeCenter Advanced Management Module (AMM), centralized monitoring of all blade FC adapters, DDM digital diagnostic monitoring supported for optical modules.
- Hot-swap compatible with BladeCenter blade enclosure, allows online replacement without powering down the entire chassis, convenient data center maintenance.
Typical Application Scenarios
- IBM BladeCenter blade virtualization cluster, dual 8G FC redundant uplink to legacy IBM DS storage arrays, small & medium enterprise ERP, file server virtual machine storage access.
- Legacy BladeCenter blade data center SAN hardware upgrade, replace aging 4G mezz HBA to boost storage bandwidth, low-cost reconstruction of existing 8G SAN fabric.
- Disaster recovery auxiliary blade server single-fabric storage access, cost-sensitive small blade data center spare replacement.
- Limitations: Only fits IBM BladeCenter CIOv slot blade servers; incompatible with rack/tower Power / System x rack servers; requires separate purchase of 8G SFP+ transceivers; bandwidth lower than 16G HBA, not suitable for high IO core production business.
