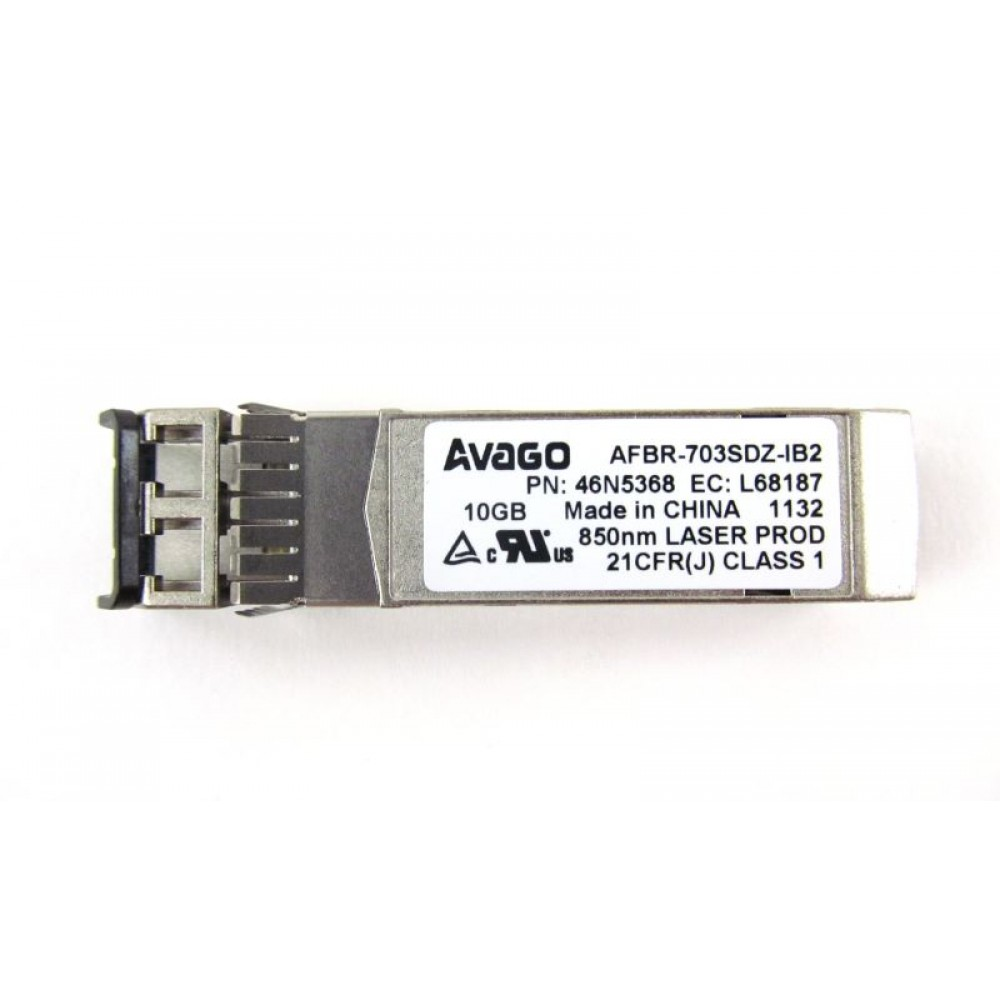

IBM 46N5368 (Avago AFBR-703SDZ-IB2) 10G SR SFP+ Optical Transceiver Full Datasheet
¥600.00
促销价
¥600.00
常规价格
跳至产品信息
IBM 46N5368 (Avago AFBR-703SDZ-IB2) 10G SR SFP+ Optical Transceiver Full Datasheet
¥600.00
促销价
¥600.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Avago original chip |
| Main PN | 46N5368 |
| Avago Model | AFBR-703SDZ-IB2 |
| Standard | 10GBASE-SR SFP+ Multi-Mode Transceiver |
| Rate | 10.3125Gbps 10 Gigabit Ethernet |
| Wavelength | 850nm VCSEL laser |
| Fiber Type | OM2 / OM3 / OM4 Multi-Mode Fiber (MMF) |
| Max Transmission Distance | 300m (OM3 fiber) |
| Monitoring Function | DDM Digital Diagnostic Monitoring supported |
| Connector | Duplex LC UPC |
| Form Factor | Hot-pluggable SFP+ |
| Origin | China |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Warranty |
| Unit Price (USD) | $86.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 86 × 7.2 = 619.2; 619.2 − 20 = 599.2 RMB |
Core Product Features
- Authentic IBM Avago OEM SFP+ module, fully validated for IBM Power, System X servers, Storwize storage arrays and IBM enterprise network switches, zero compatibility alarms on IBM enterprise hardware.
- Complies with IEEE 802.3ae 10GBASE-SR MSA standard, Avago 850nm VCSEL vertical cavity surface emitting laser core, stable 300m short-range transmission over OM3 multi-mode fiber.
- Built-in full DDM digital diagnostic monitoring circuit, real-time monitoring of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote IDC operation & maintenance fault diagnosis.
- Hot-swappable plug-and-play SFP+ metal housing, excellent heat dissipation and anti-electromagnetic interference performance, stable 7×24h continuous operation in high-density server and storage cabinets.
- Single fixed part number for unified batch procurement, consistent model for data center inventory standardization.
- Low-cost short-reach 10G interconnection solution, designed for IBM server, storage intra-cabinet high-speed cross-link.
Typical Application Scenarios
- IBM enterprise server, Storwize storage array short-distance 10G interconnection within 300m multi-mode fiber.
- IBM Power/System X server uplink to IBM layer 2/3 network switch inside IDC cabinet.
- Enterprise computer room SAN storage network short-range high-speed backbone transmission.
- Not applicable: single-mode long-distance fiber links, non-IBM brand switches may trigger hardware identification alarms, 25G/40G high-speed optical transceivers.
