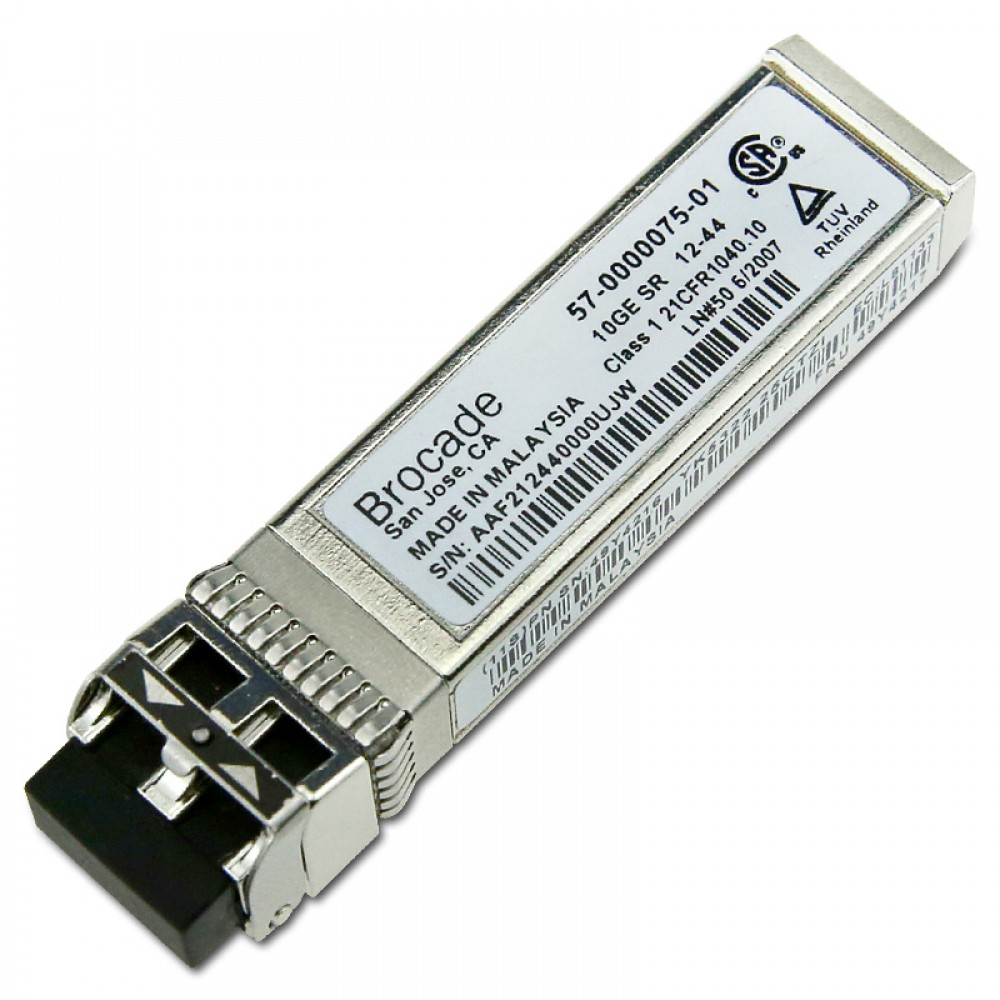

IBM 49Y4216 / 49Y4217 Brocade 10G SR SFP+ Optical Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original Brocade OEM SFP+ module, rebranded IBM PN 49Y4216 / 49Y4217, fully compatible with IBM Brocade FC SAN switches, IBM data center network switches, storage servers, zero hardware identification alarm.
2. Complies with IEEE 802.3ae 10GBASE-SR MSA standard, 850nm VCSEL vertical cavity surface emitting laser, stable 300m short-range transmission over OM3 multi-mode fiber.
3. Built-in complete DDM digital diagnostic monitoring circuit, real-time monitoring of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote IDC operation & maintenance troubleshooting.
4. Hot-swappable plug-and-play SFP+ metal housing, independent heat sink design, excellent heat dissipation and anti-electromagnetic interference performance, stable 7×24h operation in high-density storage and network cabinets.
5. Dual part number interchangeability: 49Y4216 and 49Y4217 are fully interchangeable, one SKU covers multiple hardware revisions to simplify inventory management.
6. Short-reach low-cost 10G interconnection solution, designed for Brocade SAN switch, IBM storage & server intra-cabinet high-speed cross-connection.

Typical Application Scenarios

1. IBM Brocade SAN switch, storage array controller short-distance 10G interconnection within 300m multi-mode fiber.
2. Enterprise IDC server to Brocade network switch leaf-spine cabinet internal links.
3. Financial, medical core computer room 10G short-range backbone transmission with IBM Brocade equipment.
4. Not applicable: single-mode long-distance fiber links, non-Brocade/IBM brand switches may trigger compatibility alarms, 25G/40G high-speed optical transceivers.
