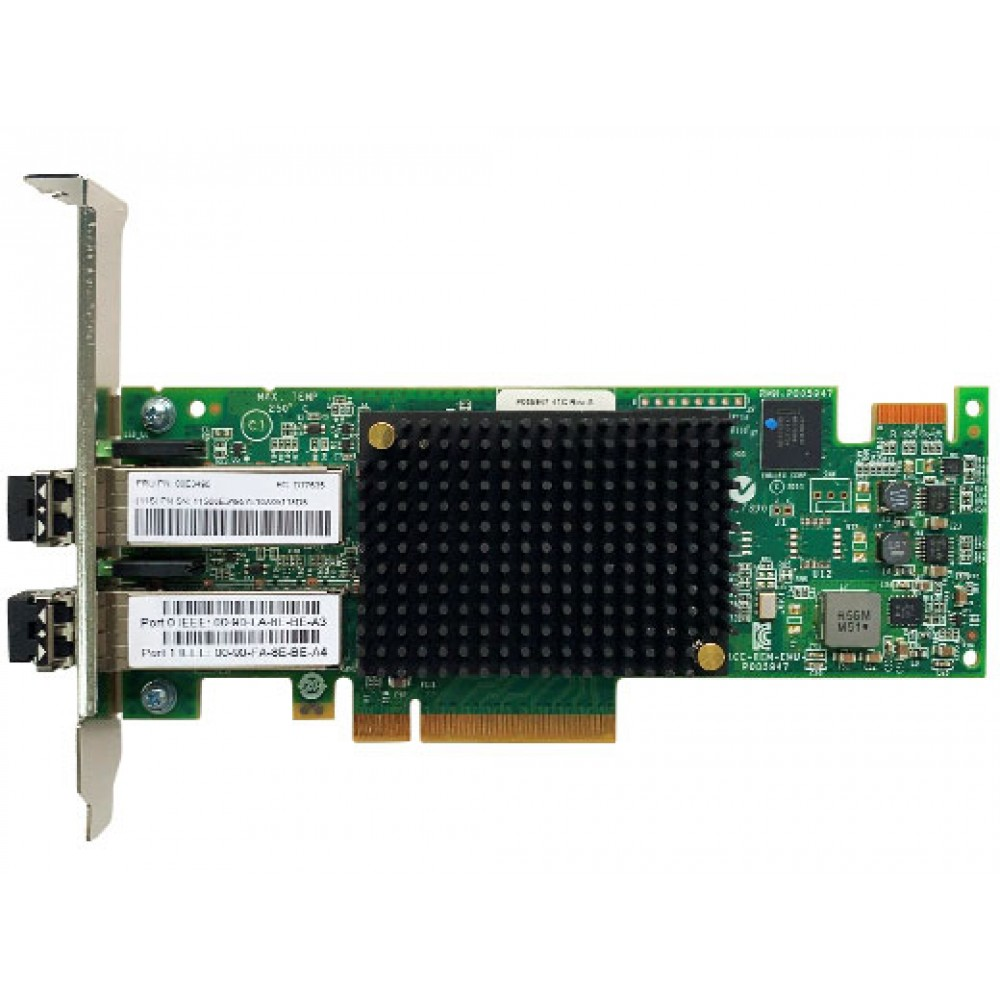

IBM 74Y2221 (FRU 00E9226 / 00E3496) Emulex LPe16002 Dual-Port 16Gb Fibre Channel HBA PCIe3.0 x8 Full Datasheet
¥7,540.00
促销价
¥7,540.00
常规价格
跳至产品信息
IBM 74Y2221 (FRU 00E9226 / 00E3496) Emulex LPe16002 Dual-Port 16Gb Fibre Channel HBA PCIe3.0 x8 Full Datasheet
¥7,540.00
促销价
¥7,540.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Emulex Storage HBA Adapter |
| Main PN | 74Y2221 |
| Interchangeable FRU | 00E9226, 00E3496 |
| Chip Vendor | Emulex |
| Model Series | LPe16002 Dual-port 16G Fibre Channel HBA |
| Supported Server | IBM Power AIX & System x x86 Windows/Linux Servers |
| Bus Interface | PCIe 3.0 x8 |
| Port Count | Dual independent SFP+ FC ports |
| FC Line Rate | 14.025Gbps (16Gb Fibre Channel) |
| Pre-installed Transceiver | Dual factory-mounted 16G SW SFP+ short-wave optical modules |
| Supported Fiber | OM3 Multi-mode fiber |
| Max Transmission Distance | 100m (OM3) |
| Heat Dissipation | Large black dense dot passive heat sink, fanless silent design |
| Bracket | Standard full-height metal bracket pre-installed, low-profile bracket optional |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $1050.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 1050 × 7.2 = 7560; 7560 − 20 = 7540 RMB per card |
Core Product Features
- Emulex LPe16002 dual-port 16G FC storage HBA customized by IBM, cross-platform certified for IBM Power AIX and System x x86 Windows/Linux servers, compatible with IBM Storwize, DS storage arrays and Brocade 16G FC SAN switches.
- Dual independent 16G Fibre Channel ports, full-duplex transmission, factory pre-installed two matched 16G short-wave SFP+ transceivers, ready for dual-fabric redundant SAN deployment without separate optical module purchase.
- PCIe 3.0 x8 high-speed bus, ultra-low latency, high throughput, support SAN boot, MPIO multi-path IO, FC-NVMe, FCP/SCSI-FC mainstream storage protocols.
- Large black dot passive heat sink, fanless zero-noise operation, stable 24/7 continuous heavy-load operation without fan failure risk, suitable for dense rack data center and quiet office environments.
- Standard full-height metal bracket pre-assembled, detachable low-profile half-height bracket available separately for compact 2U rack server flexible deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring of optical modules, convenient for daily SAN operation & maintenance fault troubleshooting.
Typical Application Scenarios
- IBM Power AIX / System x Windows/Linux server connect to Storwize V7000/V5000 storage via dual 16G FC redundant links, core database, ERP virtualization cluster production storage access.
- Medium & large enterprise mixed Power/x86 data center SAN hardware upgrade, replace legacy 8G HBA to boost storage bandwidth and link reliability, pre-matched dual SFP eliminates extra transceiver procurement cost.
- Production disaster recovery architecture, dual-port separate two independent SAN fabrics to isolate production and backup data traffic.
- Not applicable: Only supports multi-mode short-wave 16G SFP+; incompatible with long-distance single-mode FC transceivers; not certified for non-IBM server brands.
