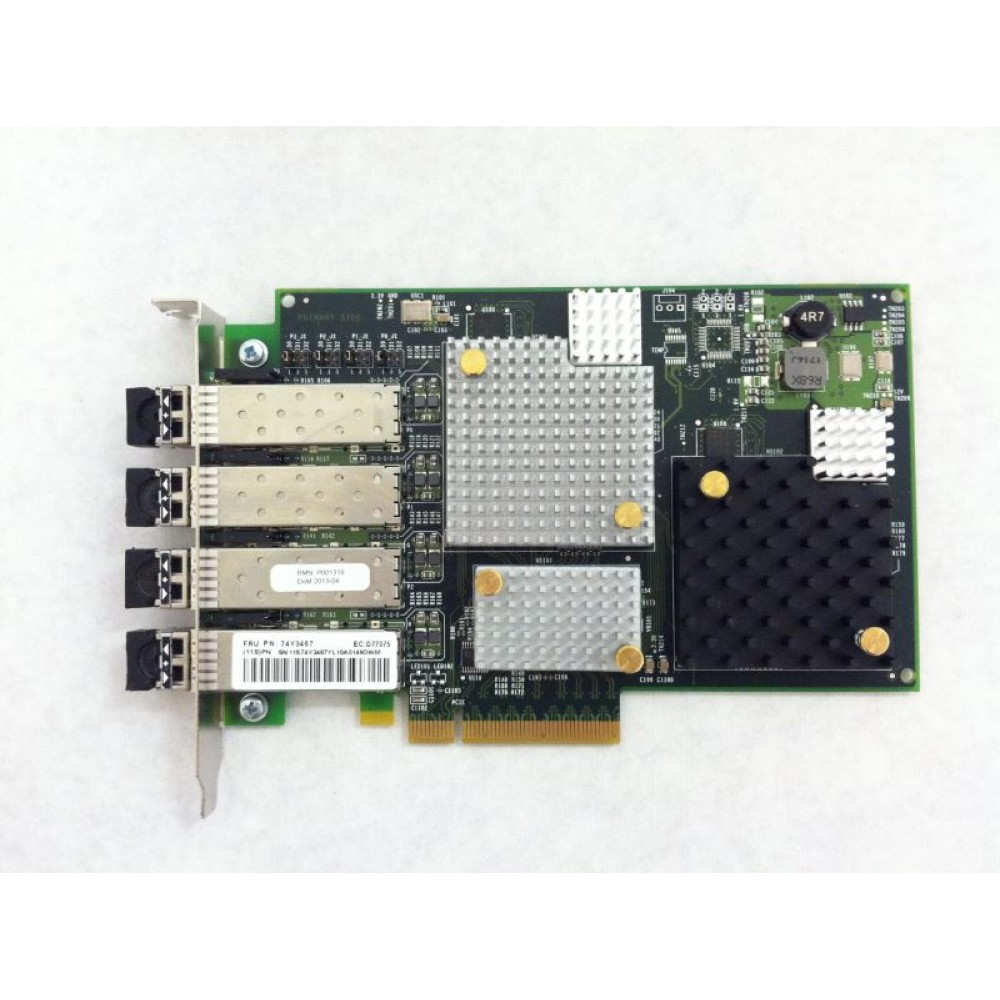

IBM 74Y3467 (FRU 5729) 4-Port 8Gb Fibre Channel HBA PCIe2.0 Full Height Datasheet
¥3,290.00
促销价
¥3,290.00
常规价格
跳至产品信息
IBM 74Y3467 (FRU 5729) 4-Port 8Gb Fibre Channel HBA PCIe2.0 Full Height Datasheet
¥3,290.00
促销价
¥3,290.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Multi-port Enterprise 8G FC Storage HBA |
| Main PN | 74Y3467 |
| Interchangeable FRU | 5729 |
| Chip Vendor | Brocade |
| Model Series | BR-845 Four-port 8G Fibre Channel HBA |
| Supported Server | IBM System x x86 Rack & Tower Servers |
| Bus Interface | PCIe 2.0 x8 Full Height |
| Port Count | Four independent SFP+ FC ports |
| FC Line Rate | 8Gbps Fibre Channel (8Gb FC) |
| Supported Transceiver | 8G SW SFP+ short-wave optical module |
| Supported Fiber | OM2 / OM3 Multi-mode fiber |
| Max Transmission Distance | 50m (OM2), 100m (OM3) |
| Heat Dissipation | Multi-piece composite silver + black passive heat sink, fanless silent design |
| Bracket | Standard full-height metal bracket pre-installed, low-profile bracket optional accessory |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $460.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 460 × 7.2 = 3312; 3312 − 20 = 3292 RMB per card |
Core Product Features
- Brocade BR-845 four-port 8G FC enterprise storage HBA customized by IBM, exclusively certified for IBM System x x86 Windows/Linux servers, compatible with legacy IBM DS storage arrays and Brocade 8G FC SAN switches.
- Four independent 8G Fibre Channel ports, full-duplex transmission, high port density design, support multi-fabric redundant links, multi-LUN virtualization cluster large-scale storage access.
- PCIe 2.0 x8 bus interface, high aggregate throughput for medium & large enterprise storage workloads, support SAN boot, MPIO multi-path IO, FCP/SCSI-FC mainstream storage protocols.
- Multi-group split passive heat sink, fanless zero-noise operation, stable 24/7 continuous heavy-load operation without fan failure risk, fit rack server front-to-back airflow heat dissipation design.
- Standard full-height metal bracket pre-assembled, detachable low-profile half-height bracket available separately for compact 2U rack flexible deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring of optical modules, convenient for enterprise multi-fabric SAN daily operation & maintenance fault troubleshooting.
Typical Application Scenarios
- Large IBM System x virtualization cluster, four 8G FC multi-fabric redundant uplink to legacy IBM DS storage arrays, multi-database, multi-virtual machine mass storage concurrent access.
- Medium & large enterprise data center SAN hardware refresh, replace aging dual-port HBA to expand port density, low-cost reconstruction of existing 8G multi-fabric SAN architecture.
- Production disaster recovery multi-path isolation architecture, four ports connect production / backup / test / archive four independent SAN fabrics simultaneously.
- Limitations: Only for IBM System x x86 servers, incompatible with IBM Power AIX servers; only supports multi-mode short-wave 8G SFP+, cannot use long-distance single-mode FC transceivers; bandwidth lower than 16G HBA, not suitable for ultra-high IO modern core production business.
