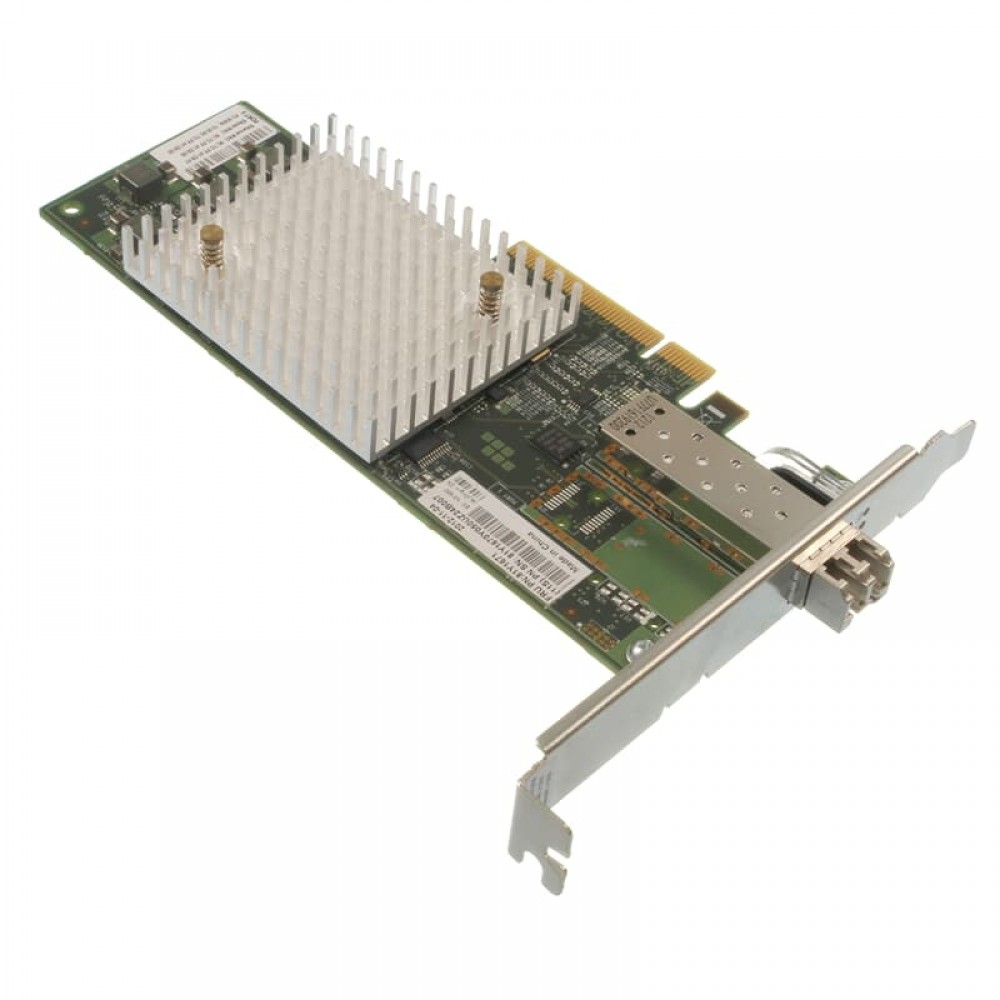

IBM 81Y1671 (FRU 81Y1670 / 81Y1668) Brocade BR-1860-1F01 IB 16Gb Single-Port Fibre Channel HBA Card Full Datasheet
¥6,316.00
促销价
¥6,316.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Brocade Storage HBA Adapter |
| Main PN | 81Y1671 |
| Interchangeable FRU | 81Y1670, 81Y1668 |
| Chip Vendor | Brocade |
| Model Series | BR-1860-1F01 Single-port 16G Fibre Channel HBA |
| Supported Server | IBM System x x86 Rack & Tower Servers |
| Bus Interface | PCIe 3.0 x8 |
| Port Count | Single independent SFP+ FC port |
| FC Line Rate | 14.025Gbps (16Gb Fibre Channel) |
| Included SFP | Brocade 57-0000088-01 16G SW SFP+ short-wave optical module pre-installed |
| Supported Fiber | OM3 Multi-mode fiber |
| Max Transmission Distance | 100m (OM3) |
| Heat Dissipation | Large vertical aluminum fin passive heat sink, fanless design |
| Bracket | Standard full-height metal bracket, low-profile bracket optional accessory |
| Condition | Factory New Sealed IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official IBM Warranty |
| Unit Price (USD) | $880.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 880 × 7.2 = 6336; 6336 − 20 = 6316 RMB per card |
Core Product Features
- Brocade BR-1860 single-port 16G FC storage HBA customized by IBM, fully certified for IBM System x x86 Windows/Linux servers, compatible with IBM Storwize / DS storage arrays and Brocade FC SAN switches.
- Single independent 16G Fibre Channel port, pre-installed original Brocade 16G short-wave SFP+ transceiver, ready for direct SAN deployment without separate optical module purchase.
- PCIe 3.0 x8 high-speed bus, ultra-low latency, high throughput, support SAN boot, MPIO multi-path IO, FC-NVMe, FCP/SCSI-FC mainstream storage protocols, Brocade Fabric Vision diagnostic toolkit built-in.
- Large vertical aluminum fin passive heat sink, fanless silent operation, stable 24/7 continuous heavy load operation without fan failure risk, ideal for quiet office small server environments.
- Standard full-height metal bracket pre-assembled, low-profile half-height bracket available separately for compact 2U rack server deployment.
- Hot-pluggable SFP+ port, support DDM digital diagnostic monitoring, one-piece packaged with matched Brocade SFP for unified spare parts management.
Typical Application Scenarios
- Entry-level IBM System x server single-link access to Storwize V5000 entry storage, small enterprise ERP, file server, backup server storage uplink.
- SAN test environment, auxiliary backup server single-fabric storage access, cost-sensitive small data center SAN upgrade with pre-matched SFP.
- Legacy storage equipment spare replacement, replace old 8G single-port HBA to upgrade storage bandwidth, eliminate extra SFP procurement step.
- Not applicable: Only for IBM System x x86 servers, incompatible with IBM Power AIX servers; only supports multi-mode short-wave 16G SFP+, cannot use long-distance single-mode FC transceivers.
