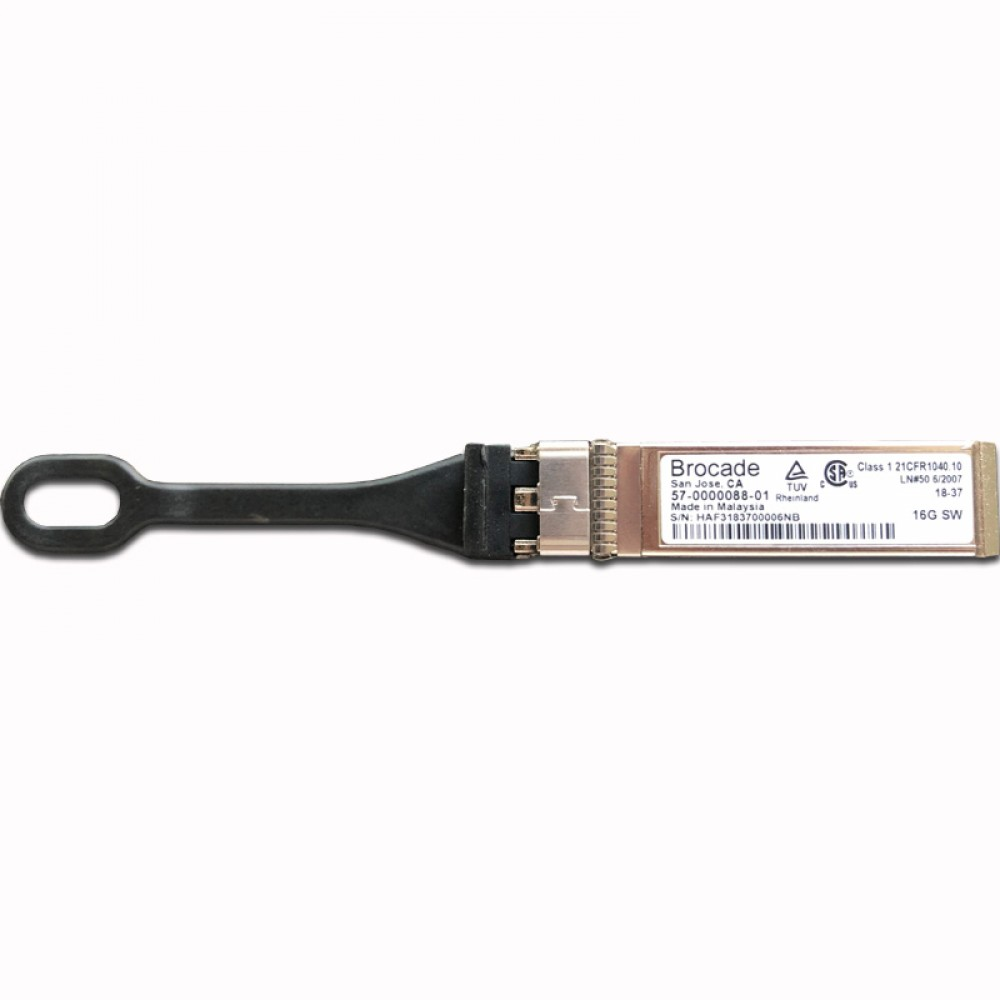

IBM 88Y6393 (FRU 88Y6395 / 88Y6396) 16Gb FC SW SFP+ Fibre Channel Optical Transceiver Full Datasheet
IBM 88Y6393 (FRU 88Y6395 / 88Y6396) 16Gb FC SW SFP+ Fibre Channel Optical Transceiver Full Datasheet
¥1,176.00
促销价
¥1,176.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM OEM Brocade storage SFP+ |
| Main PN | 88Y6393 |
| Interchangeable FRU | 88Y6395, 88Y6396 |
| Brocade PN | 57-0000088-01 |
| Standard | 16G FC SW SFP+ (16G Fibre Channel Short Wave) |
| Rate | 14.025Gbps Fibre Channel storage dedicated |
| Wavelength | 850nm VCSEL short wave laser |
| Fiber Type | OM2 / OM3 Multi-Mode Fiber (MMF) |
| Max Transmission Distance | 100m (OM3 fiber) |
| Monitoring Function | DDM Digital Diagnostic Monitoring supported |
| Connector | Duplex LC UPC |
| Form Factor | Hot-pluggable SFP+ with pull loop handle |
| Origin | Malaysia |
| Condition | Factory New Sealed Brocade / IBM certified |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Warranty |
| Unit Price (USD) | $166.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 166 × 7.2 = 1195.2; 1195.2 − 20 = 1175.2 RMB |
Core Product Features
- Original Brocade OEM SFP+ module branded IBM PN 88Y6393, fully validated for IBM Brocade FC SAN switches, storage HBA cards, Storwize/V7000 storage arrays, zero hardware identification alarm on IBM enterprise SAN equipment.
- Complies with FC-PI-6 Fibre Channel standard, 850nm VCSEL short-wave laser, stable 100m short-distance transmission over OM3 multi-mode fiber, optimized for high-speed storage SAN intra-cabinet interconnection.
- Built-in complete DDM digital diagnostic monitoring circuit, real-time monitoring of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote SAN operation & maintenance fault troubleshooting.
- Hot-swappable plug-and-play SFP+ metal housing with dedicated pull-tab loop handle for easy removal in dense rack environments, excellent heat dissipation and anti-electromagnetic interference performance, supports 7×24h continuous stable operation in high-density IDC storage cabinet environments.
- Multi-part-number full interchangeability: PN 88Y6393 / FRU 88Y6395 / 88Y6396 can replace each other directly, simplify warehouse inventory management for 16G storage upgrade projects.
- High-speed cost-effective short-wave 16G SAN interconnection solution, widely deployed for storage controller to FC switch cabinet internal wiring, 16G SAN migration upgrade.
Typical Application Scenarios
- IBM Storwize/V7000 storage array controller to Brocade SAN switch short-distance 16G FC interconnection within 100m multi-mode fiber.
- Blade server storage HBA card uplink to IBM FC SAN switch inside cabinet for 16G high-speed storage network.
- Financial, medical enterprise core storage SAN backbone short-range high-speed transmission, SAN performance upgrade.
- Not applicable: long-distance single-mode SAN fiber links, ordinary Ethernet network switches, non-Brocade/IBM storage devices may trigger compatibility alarms, 8G/32G Fibre Channel optical transceivers.
