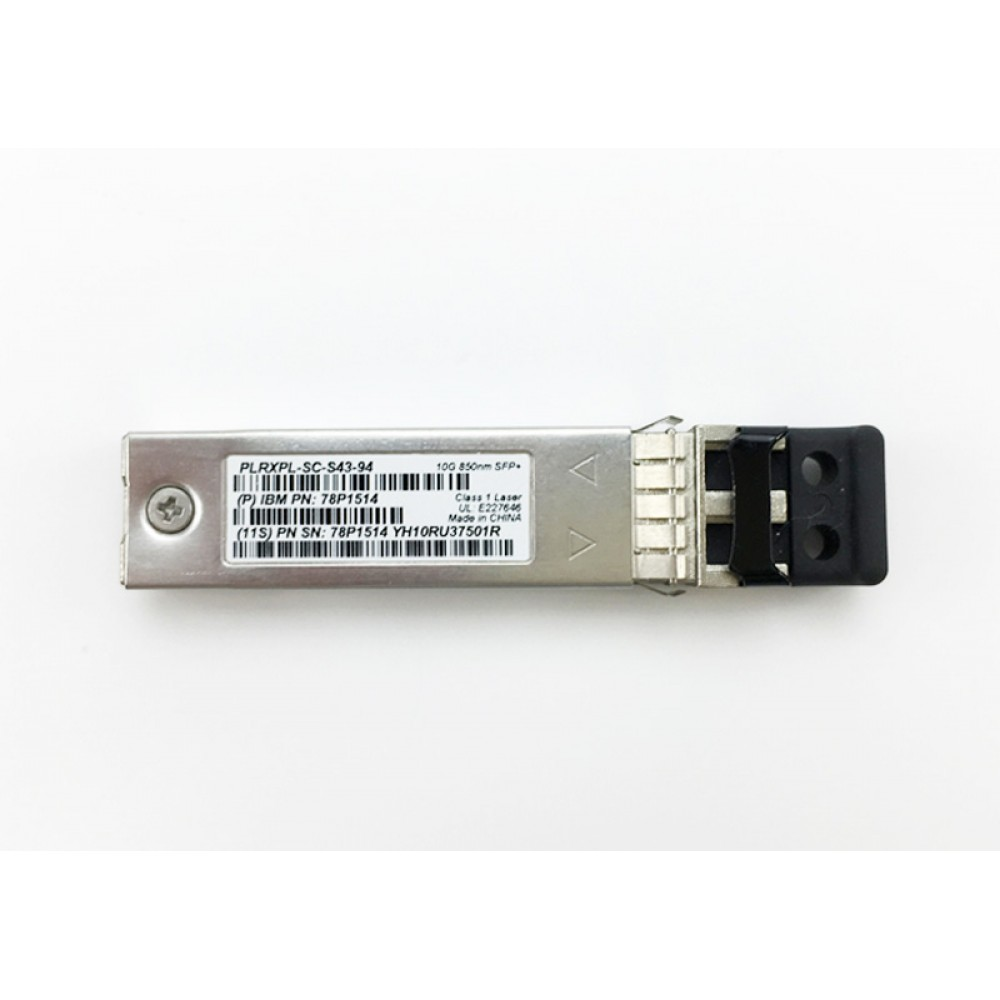

IBM PLRXPL-SC-S43-94 (PN:78P1514) 10G SR SFP+ Optical Transceiver Full Datasheet
¥268.00
促销价
¥268.00
常规价格
跳至产品信息
IBM PLRXPL-SC-S43-94 (PN:78P1514) 10G SR SFP+ Optical Transceiver Full Datasheet
¥268.00
促销价
¥268.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | IBM (OEM Finisar original chip) |
| Full Part Number | PLRXPL-SC-S43-94 |
| IBM Internal PN | 78P1514 |
| Standard | 10GBASE-SR SFP+ Multi-Mode Transceiver |
| Rate | 10.3125Gbps 10G Ethernet |
| Wavelength | 850nm VCSEL laser |
| Fiber Type | OM2/OM3/OM4 Multi-Mode Fiber (MMF) |
| Max Transmission Distance | 300m (0.3km, OM3 fiber) |
| Monitoring Function | DDM Digital Diagnostic Monitoring supported |
| Connector | Duplex LC UPC |
| Form Factor | Hot-pluggable SFP+ |
| Condition | Factory New Sealed IBM OEM |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Warranty |
| Unit Price (USD) | $40.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 40 × 7.2 = 288; 288 − 20 = 268 RMB |
Core Product Features
- Authentic IBM original OEM SFP+ module, fully certified for IBM System X, Power, Storwize storage and IBM network switches, perfect hardware compatibility without compatibility alarms.
- Complies with IEEE 802.3ae 10GBASE-SR MSA standard, 850nm VCSEL vertical cavity surface emitting laser, max 300m short-range transmission over OM3 multi-mode fiber.
- Built-in complete DDM digital diagnostic monitoring circuit, real-time reading of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for data center remote O&M troubleshooting.
- Hot-swappable plug-and-play SFP+ package, no power-off required during replacement, optimized metal housing heat dissipation, stable operation in high-density IBM server/storage cabinets.
- Strict IBM industrial quality control, wide operating temperature range, excellent anti-electromagnetic interference performance, exclusive matching for IBM enterprise storage and server interconnection scenarios.
- Short-reach low-cost 10G interconnection solution, dedicated for IBM internal equipment intra-cabinet cross-connection.
Typical Application Scenarios
- IBM enterprise server, storage array (Storwize/V7000) short-distance 10G interconnection within 300m multi-mode fiber.
- IBM Power/System X server to IBM network switch intra-data center cabinet links.
- Enterprise IDC computer room, SAN storage network short-range high-speed backbone transmission.
- Not applicable: single-mode long-distance links, non-IBM brand equipment may have identification alarms, 25G/40G high-speed optical modules.
