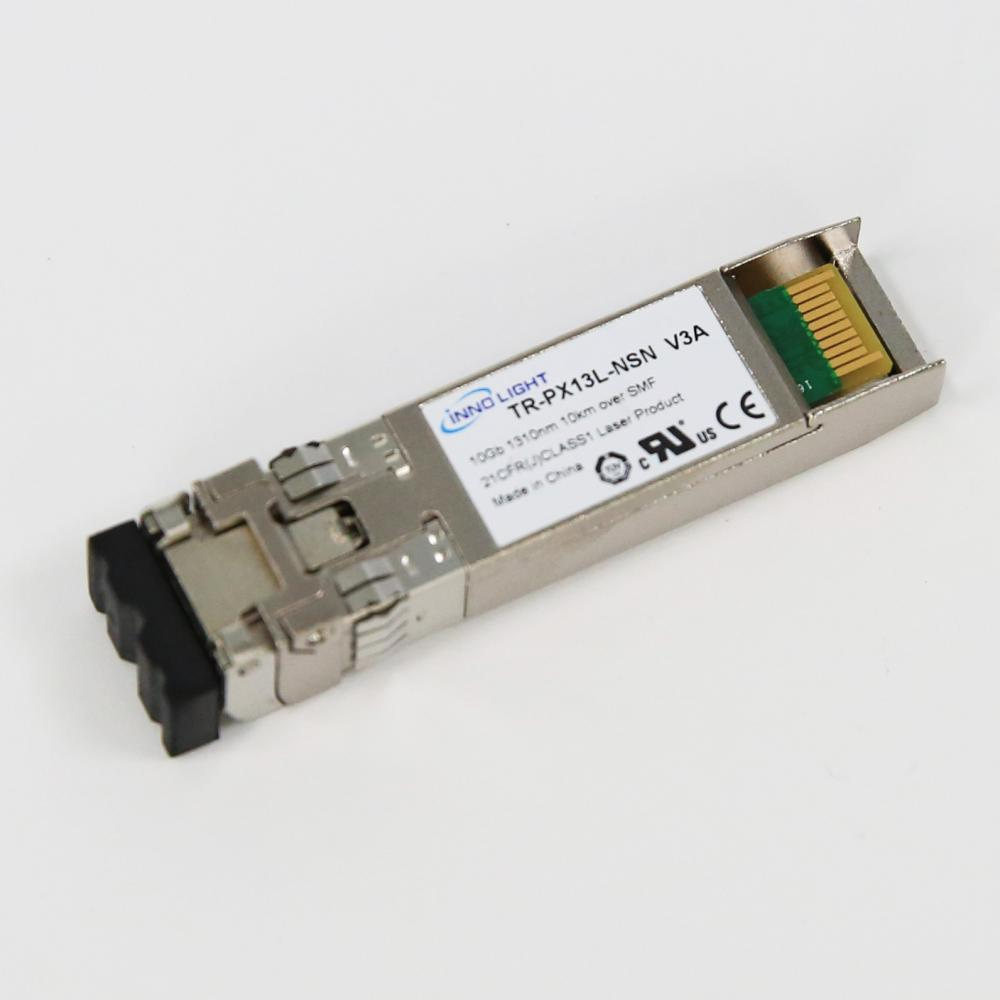

Innolight TR-PX13L-N00 / TR-PX13L-NSN 10GBASE-LR 1310nm 10km SFP+ Optical Transceiver Datasheet

Basic Parameter Table

Core Product Features

1. Innolight original 10G LR SFP+ optical module, complies with IEEE 10GBASE-LR standard; TR-PX13L-NSN is customized NSN coding version for specific vendor equipment, same optical performance as TR-PX13L-N00.
2. 1310nm DFB long-wave laser, stable 10km transmission over single-mode fiber, designed for cross-rack, cross-building medium-long distance data center fiber links.
3. Built-in DDM real-time monitoring: transmit optical power, receive optical power, internal temperature, supply voltage, laser bias current, supports remote online fault diagnosis and pre-alarm.
4. Hot-pluggable SFP+ package, LC duplex interface, industrial temperature range 0℃~70℃, low power consumption, stable 24/7 continuous operation for enterprise and IDC network.
5. Universal open coding base model TR-PX13L-N00 plug-and-play with Cisco, Huawei, H3C, IBM, Dell and mainstream brand 10G switches/NICs; NSN variant matches dedicated brand equipment without compatibility alarms.
6. Strict factory optical power screening, consistent optical indexes, long service life, widely used in enterprise core backbone, cloud server uplink, inter-switch ISL trunk links.

Typical Application Scenarios

1. Data center core switch inter-switch ISL trunk single-mode fiber connection within 10km.
2. Enterprise cross-building campus network long-distance 10G backbone link.
3. Cloud server, storage equipment 10G Ethernet uplink single-mode fiber transmission.
4. Small IDC remote backup network medium-distance fiber interconnection.

Limitations

• Only works with OS1/OS2 single-mode fiber; cannot be used on OM2/OM3 multi-mode fiber.
• Max transmission distance limited to 10km; cross-city links over 10km require 10G ER/XFP extended modules.
• Pure Ethernet transceiver, not compatible with Fibre Channel SAN HBAs.
