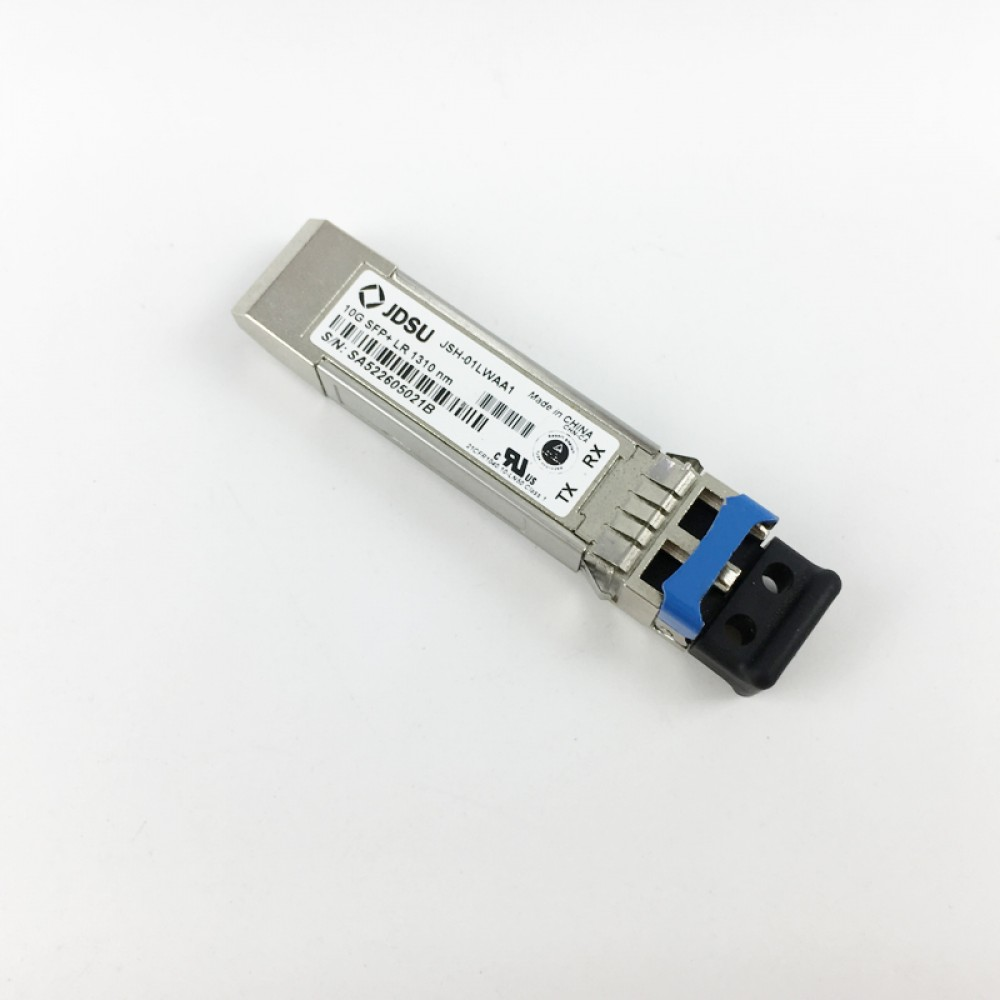

JDSU JSH-01LWAA1 10GBASE-LR SFP+ 1310nm 10km Optical Transceiver Datasheet
¥300.00
促销价
¥300.00
常规价格
跳至产品信息
JDSU JSH-01LWAA1 10GBASE-LR SFP+ 1310nm 10km Optical Transceiver Datasheet
¥300.00
促销价
¥300.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | JDSU |
| Main PN | JSH-01LWAA1 |
| Form Factor | SFP+ |
| Data Rate | 10Gbps Ethernet (10GBASE-LR) |
| Wavelength | 1310nm Long Wave DFB |
| Supported Fiber | OS1 / OS2 Single-mode Fiber (SMF) |
| Max Transmission Distance | 10km |
| Connector Type | LC Duplex (Blue pull tab for LR) |
| Monitoring | DDM Digital Diagnostic Monitoring |
| Certifications | CE, UL, Class 1 Laser Safety |
| Condition | Factory New Sealed Original |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Manufacturer Warranty |
| Unit Price (USD) | $45.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 45 × 7.2 = 324; 324 − 20 = 304 RMB per piece |
Core Product Features
- Original JDSU enterprise-grade SFP+ optical module, fully compliant with IEEE 10GBASE-LR standard, mainstream medium-long distance single-mode interconnection solution for data centers and enterprise campuses.
- 1310nm DFB laser chip, stable 10km transmission over single-mode fiber, low attenuation, strong anti-interference performance.
- Full DDM real-time monitoring function: transmit optical power, receive optical power, internal temperature, supply voltage, laser bias current, supporting remote online fault location and early warning.
- Standard hot-pluggable SFP+ package, blue plastic pull tab for LR long-distance identification, LC duplex interface, industrial temperature range 0℃~70℃, stable 24/7 non-stop operation.
- Standard open vendor coding without lock-in, plug-and-play with Cisco, Huawei, H3C, IBM, Dell and all mainstream 10G switches, server NICs and storage equipment.
- Mature JDSU original industrial design, high consistency, long service life, widely used for cross-rack, cross-building core network trunk links.
Typical Application Scenarios
- Cloud data center core switch inter-switch ISL trunk within 10km single-mode fiber.
- Enterprise cross-campus 10G backbone fiber interconnection.
- Server, storage array 10G Ethernet uplink single-mode transmission.
- Small and medium IDC remote backup medium-distance fiber link.
Limitations
- Only compatible with OS1/OS2 single-mode fiber, cannot transmit over OM3/OM4 multi-mode fiber.
- Max distance limited to 10km; ultra-long cross-city links over 10km need ER/ZR extended modules.
- SFP+ form factor, incompatible with SFP gigabit slots without adapter.
