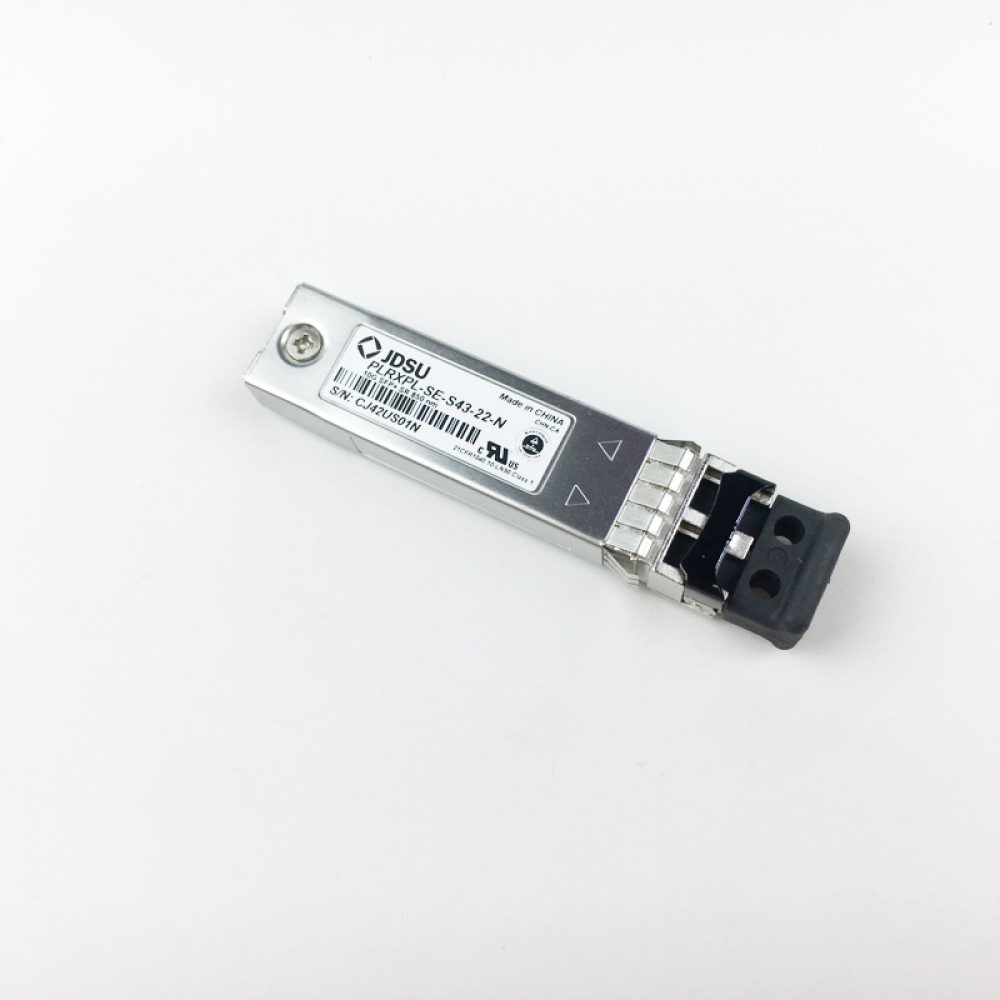

JDSU PLRXPL-SE-S43-22-N (OMXD30N03 / 34030600) 10.3125G SFP+ SR 850nm 300m Multi-mode Optical Transceiver Datasheet
¥845.00
促销价
¥845.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | JDSU |
| Main PN | PLRXPL-SE-S43-22-N; Equivalent model OMXD30N03; Huawei part code 34030600 |
| Form Factor | SFP+ |
| Data Rate | 10.3125Gbps (10GBASE-SR / 10G Fibre Channel SW) |
| Wavelength | 850nm Short Wave VCSEL |
| Supported Fiber | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Transmission Distance | 300m (OM4); 100m (OM3) |
| Connector Type | LC Duplex |
| Monitoring | DDM Digital Diagnostic Monitoring |
| Certifications | CE, UL, Class 1 Laser Safety |
| Condition | Factory New Sealed Original |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Manufacturer Warranty |
| Unit Price (USD) | $120.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 120 × 7.2 = 864; 864 − 20 = 844 RMB per piece |
Core Product Features
- Original JDSU industrial-grade SFP+ optical module, dual compatible with IEEE 10GBASE-SR Ethernet and 10G Fibre Channel SW SAN storage, widely used for Huawei enterprise and data center equipment.
- 850nm VCSEL short-wave laser chip, stable 300m transmission over OM4 multi-mode fiber, mainstream low-cost short-reach interconnection solution inside data center.
- Built-in full DDM real-time monitoring: transmit optical power, receive optical power, internal temperature, supply voltage, laser bias current, support remote online fault pre-alarm and troubleshooting.
- Standard hot-swappable SFP+ package, black pull tab for SR multi-mode identification, LC duplex interface, industrial temperature range 0℃~70℃, low power consumption, 24/7 stable uninterrupted operation.
- Special firmware coding matching Huawei equipment (part code 34030600), no compatibility alarms; also plug-and-play with Cisco, H3C, IBM, Dell and other mainstream brand 10G switches, server NICs, Fibre Channel HBAs.
- Mature classic JDSU original design, high yield and reliability, suitable for intra-cabinet, short cross-rack equipment interconnection, cloud ToR switch uplink.
Typical Application Scenarios
- Cloud data center leaf-spine / ToR switch short-distance inter-switch trunk within 300m OM4 multi-mode fiber.
- 10G Ethernet server NIC uplink to top-of-rack switch.
- SAN storage array 10G Fibre Channel SW connection with storage switch.
- Enterprise computer room short-distance core network interconnection.
Limitations
- Only works with OM3/OM4 multi-mode fiber; cannot transmit over OS1/OS2 single-mode fiber.
- Max distance only 300m (OM4); long-distance cross-building links need LR/ER single-mode modules.
- Cannot support long-wave single-mode transmission.
